Engine Coolant Temperature Sensor Replacement

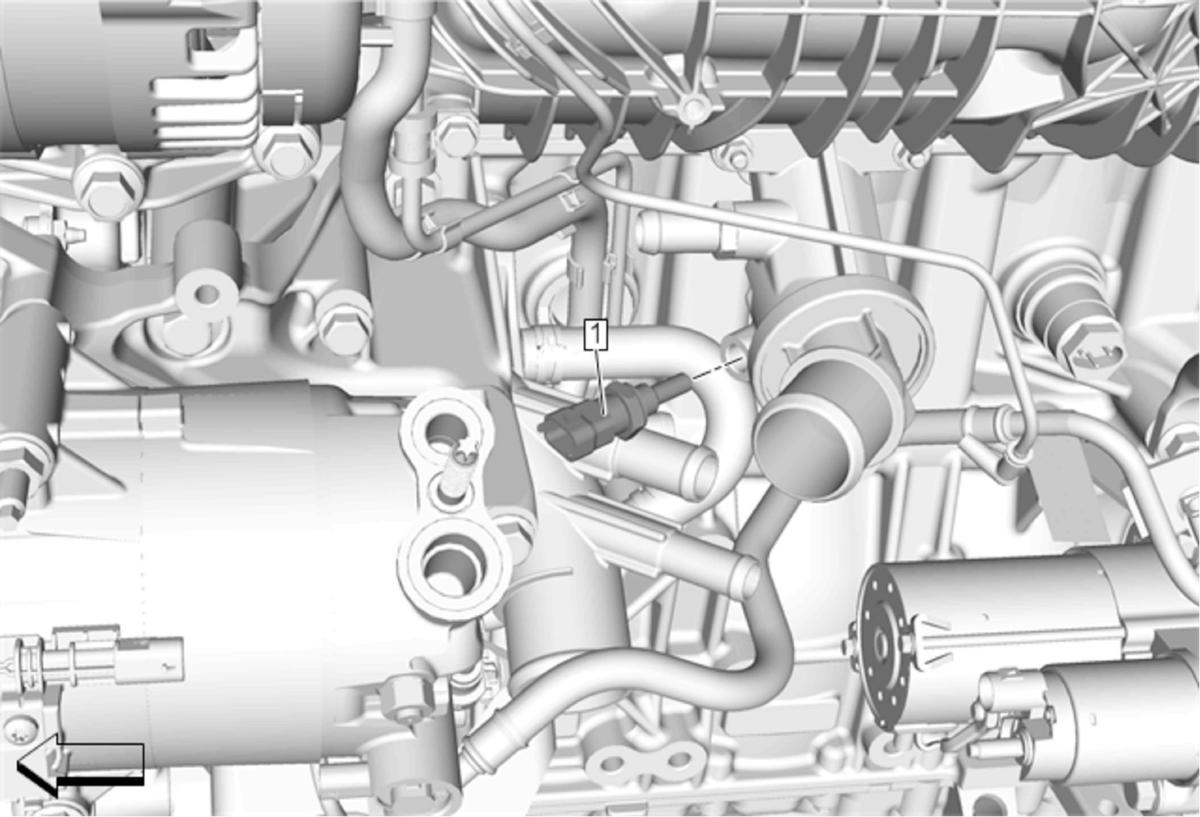

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the left side wheelhouse splash shield. Refer to Wheelhouse Splash Shield Replacement (Left Side) .
1	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector from the engine coolant temperature sensor. tighten  15 N.m. (11 lb ft)
