Installation Procedure

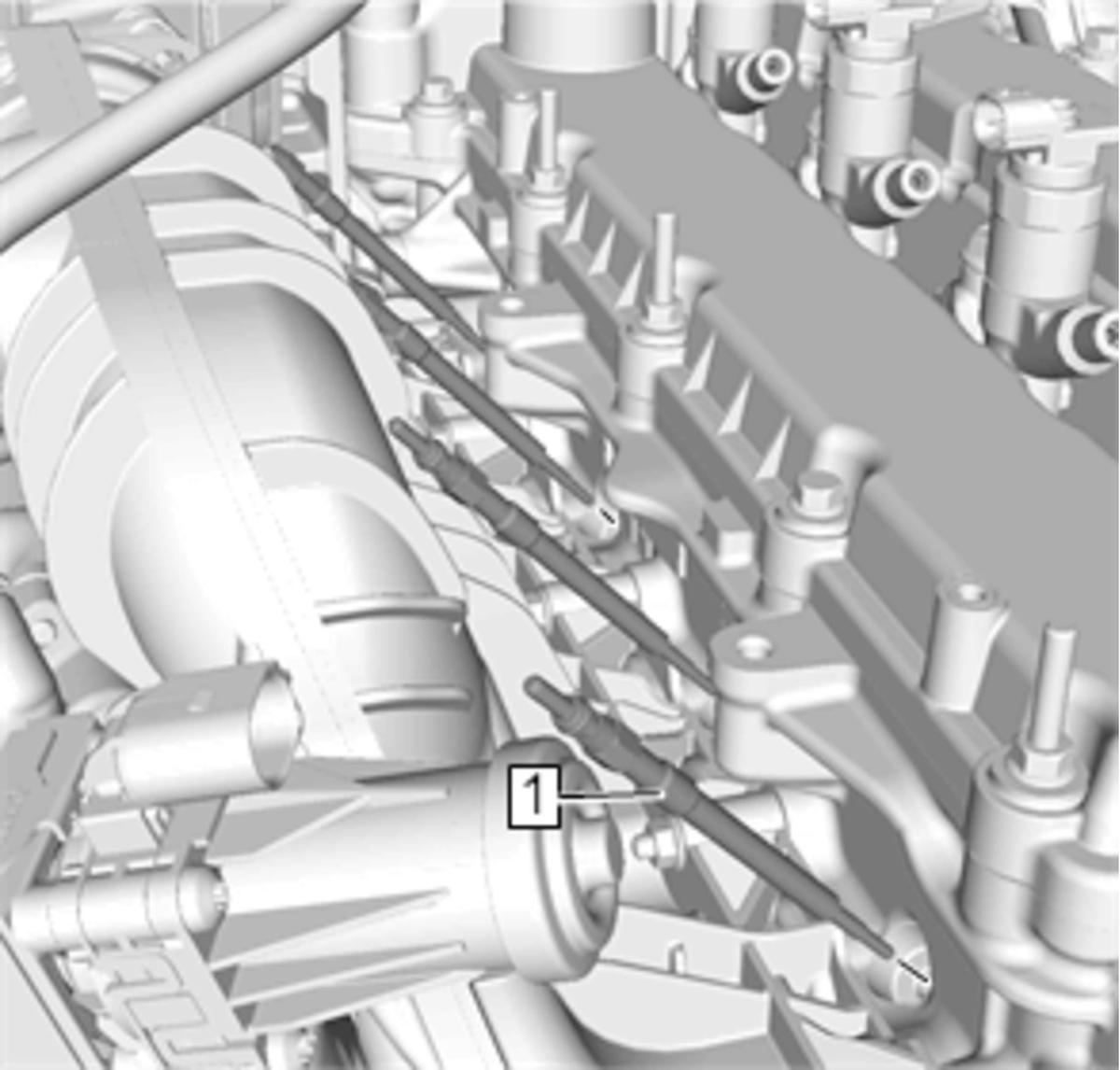

Hand start the glow plugs (1) into the cylinder head [4x].

Courtesy of
- Tighten the glow plugs to 11 N.m. (97 lb in).
  CAUTION:
  Refer to Component Fastener Tightening Caution .

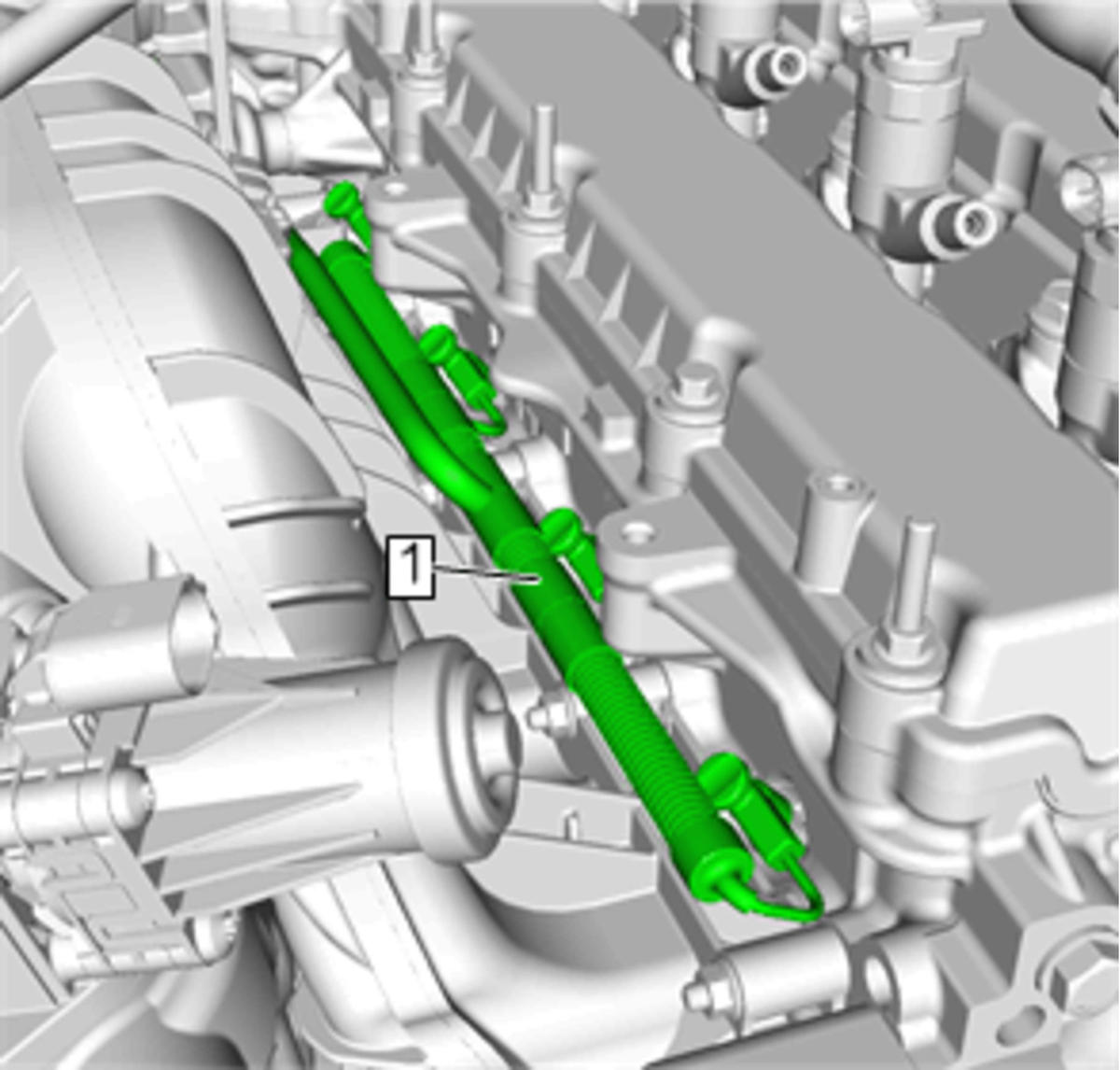

Connect Diesel Glow Plug Wiring Harness [4x]

Courtesy of
Install Diesel Fuel Separator

Courtesy of

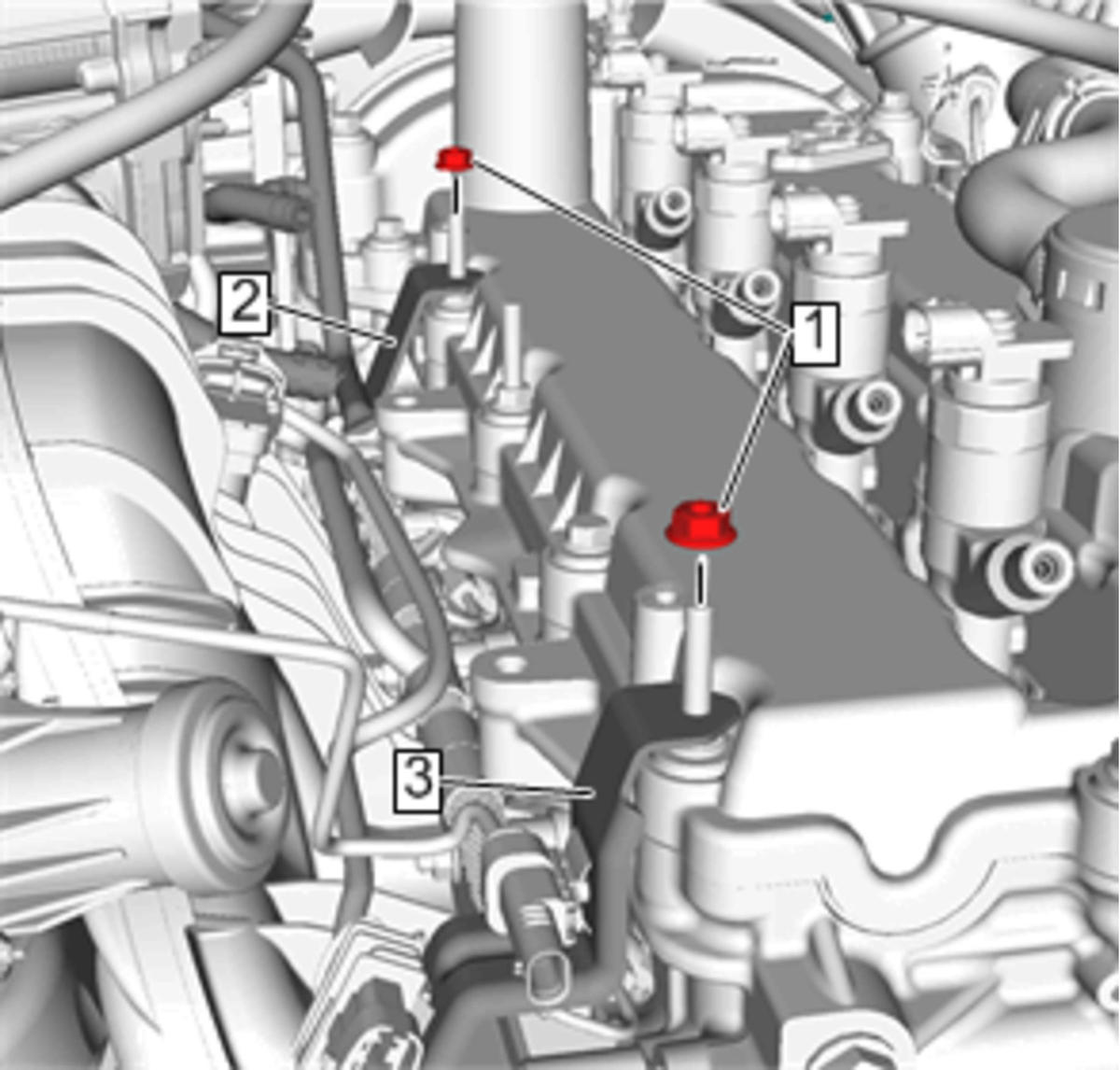

Install Exhaust Temperature Sensor Bracket
Install Auxiliary Heater Inlet and Outlet Hose Clip Nut and tighten 5.5 N.m. (49 lb in)
CAUTION:
Refer to Fastener Caution .
Install - Refer to Fuel Injector Deadener Replacement
