BCM Power, Ground and Serial Data

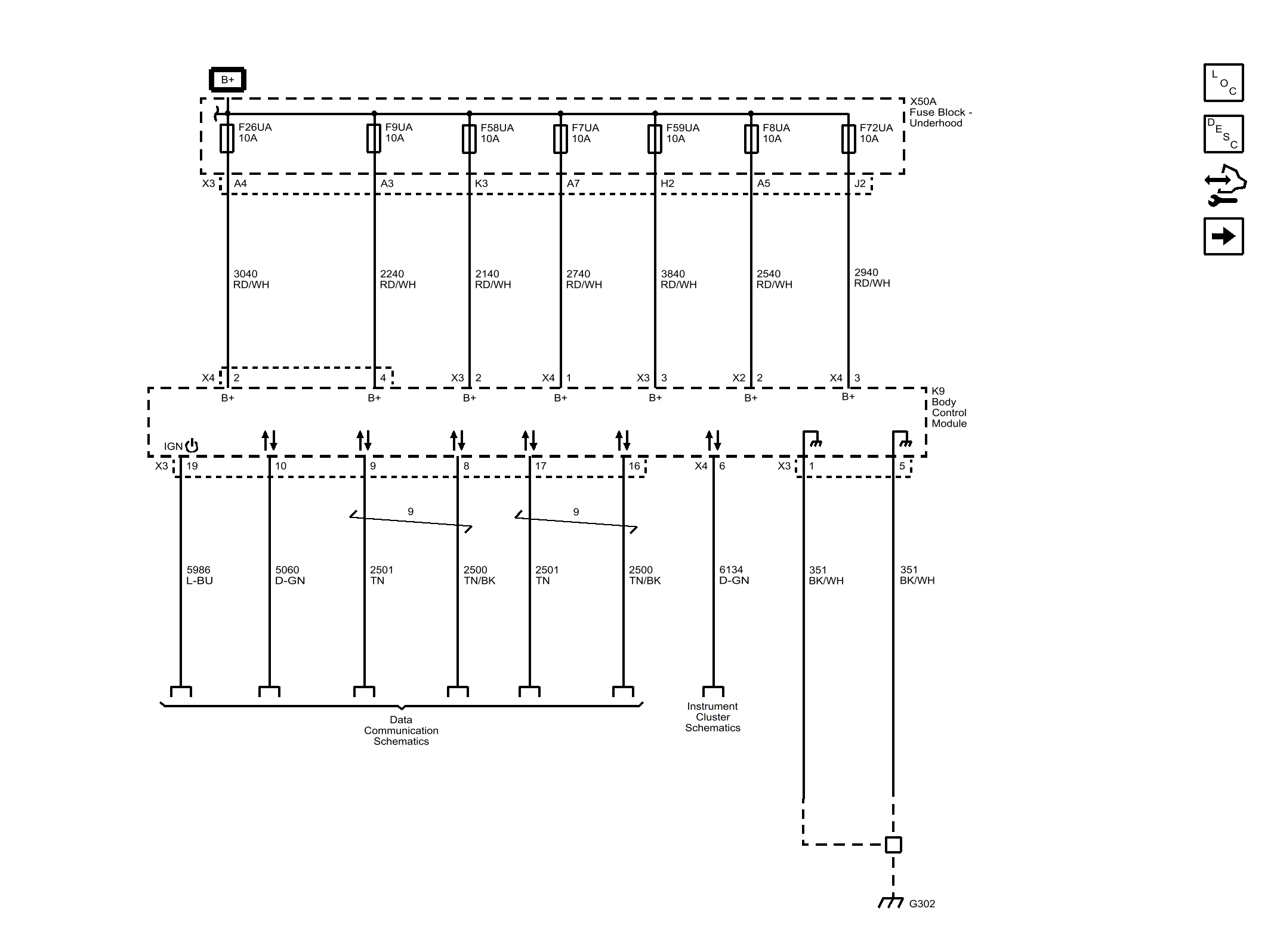

Fig 1: BCM Power, Ground and Serial Data
GM4482521Courtesy of GENERAL MOTORS COMPANY
