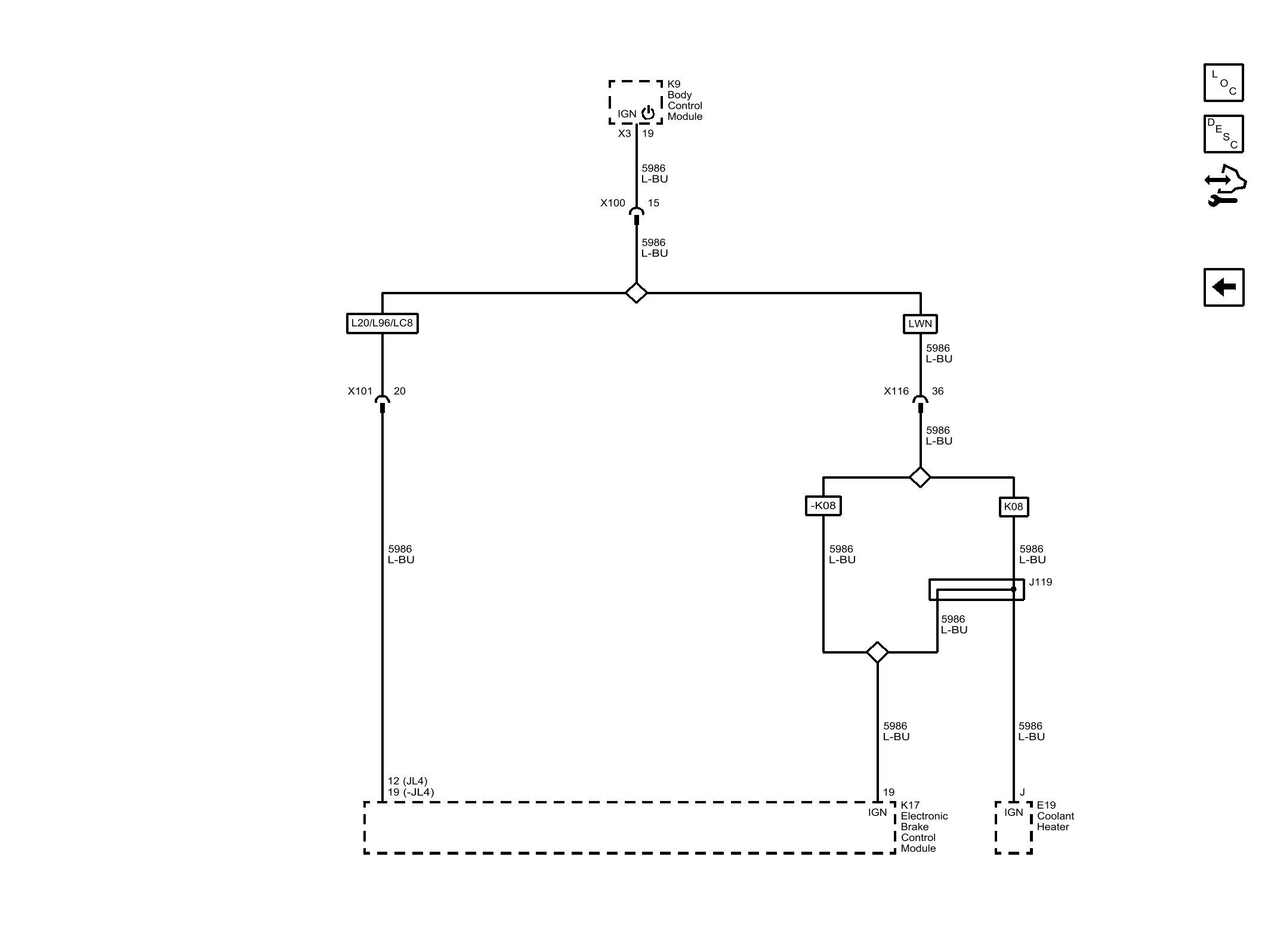

Home › Chevrolet › 2017 › Express 2500 LS, 2.8L Eng VIN 1 › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Communications Enable
