Data Communication Wiring Schematics
›
Powertrain Expansion Bus (LWN)
Powertrain Expansion Bus (LWN)

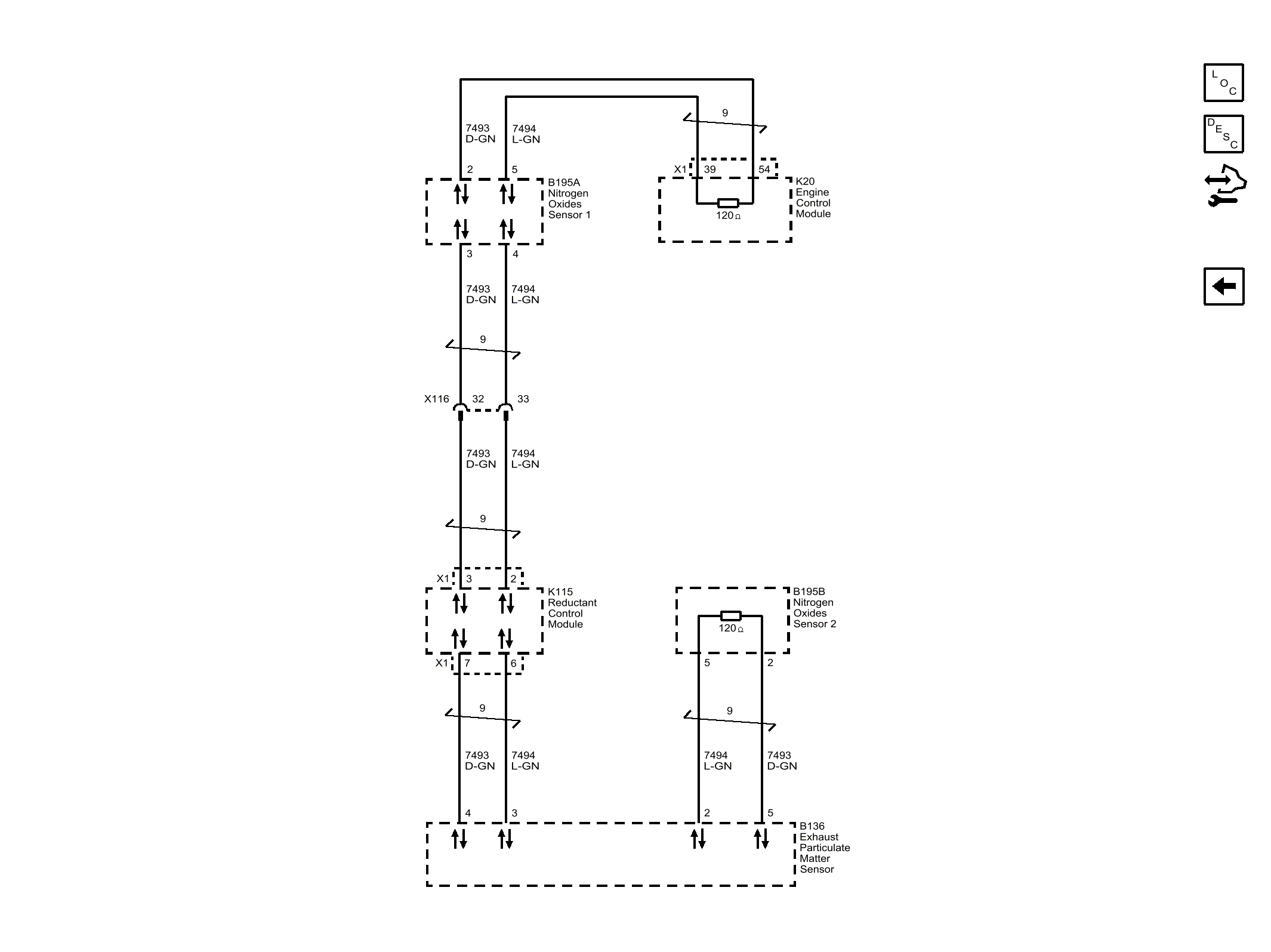

Fig 1: Powertrain Expansion Bus (LWN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
