Rear Seat Audio Control Replacement

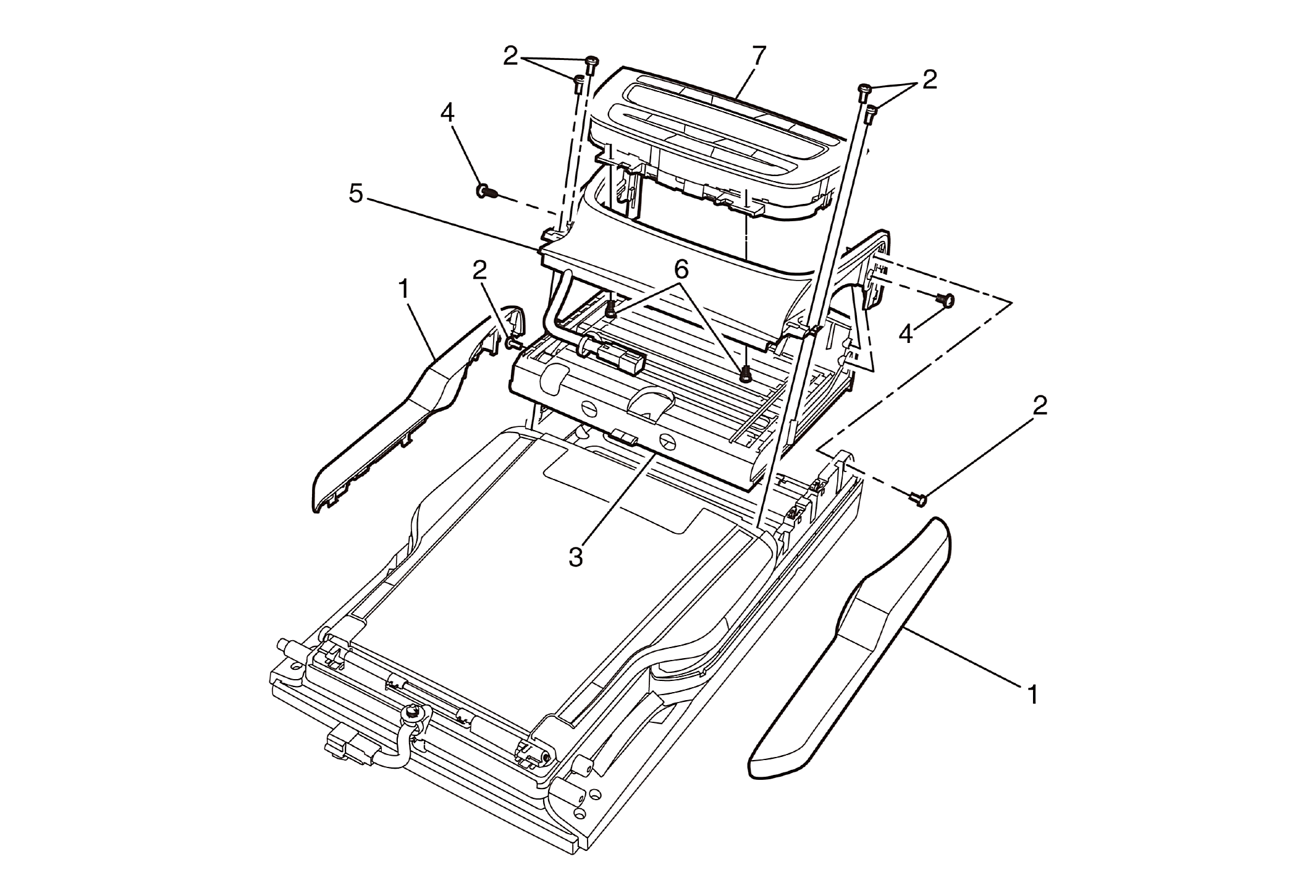

Fig 1: Rear Seat Audio Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Armrest Panel Procedure Open the rear seat armrest multifunction compartment armrest. Remove the rear armrest panel using a suitable tool.
2	Audio Rear Control Bracket Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Audio Rear Control Bracket Procedure Remove the bracket, bezel and control as an assembly. Disconnect the electrical connector.
4	Audio Rear Control Bezel Screw (Qty: 2) Tighten 2.5 N.m (22 lb in)
5	Audio Rear Control Bezel Procedure Remove the bezel and audio control as an assembly.
6	Audio Rear Control Screw (Qty: 2) Tighten 2.5 N.m (22 lb in)
7	Audio Rear Control
