Right Side of Engine Compartment Components

Right Side of Engine Compartment Components

Items
1: Q69 CNG High Pressure Regulator Solenoid Valve (FHV) Q69 CNG High Pressure Regulator Solenoid Valve
2: B257 Alternative Fuel Pressure Sensor B221 Alternative Fuel Tank Pressure Sensor

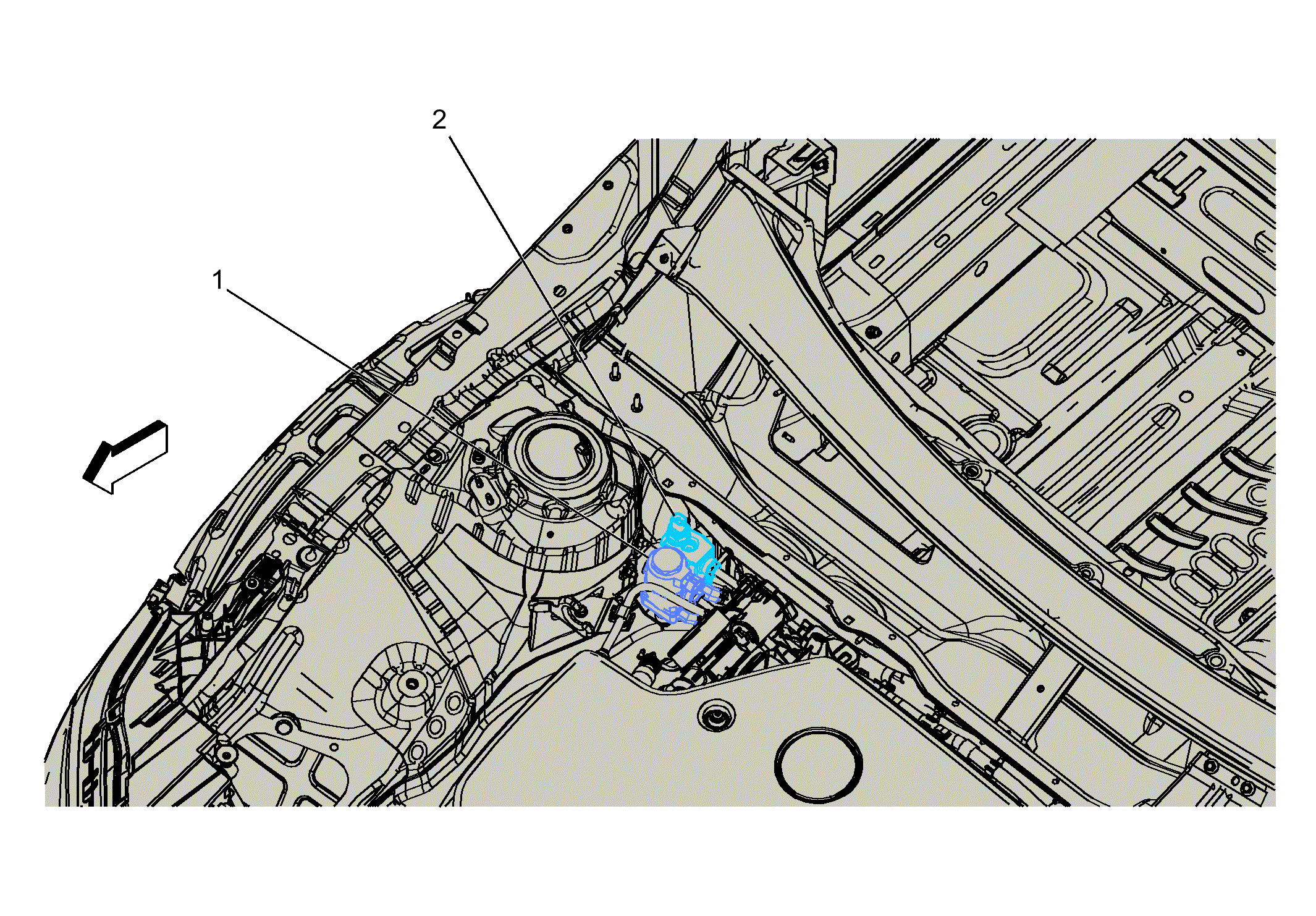

Fig 1: Right Side of Engine Compartment Components
GM4053939Courtesy of GENERAL MOTORS COMPANY
