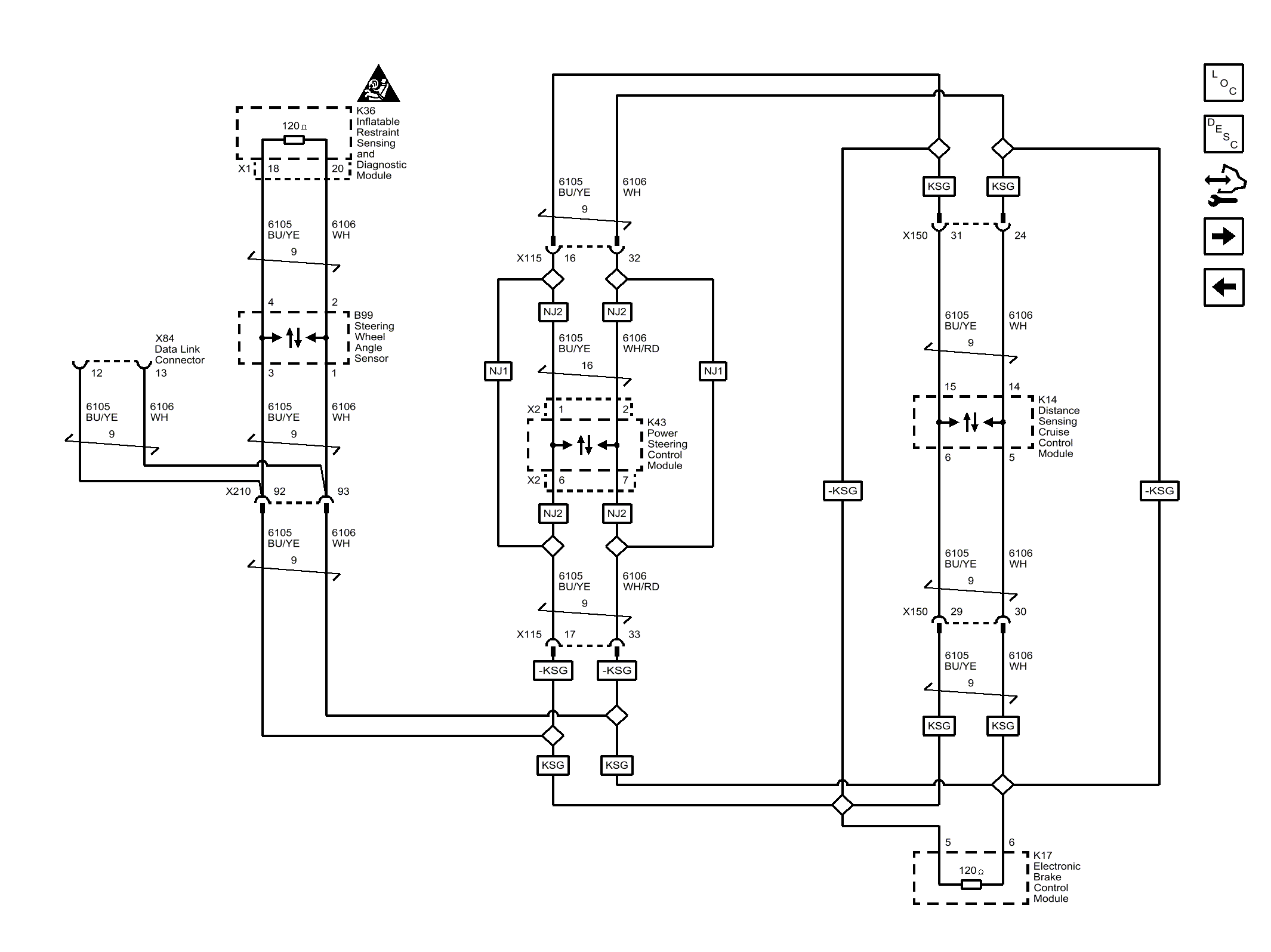

Home › Chevrolet › 2017 › Impala Premier, Gas › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Chassis High Speed GMLAN
