Communication Interface Module Battery Replacement

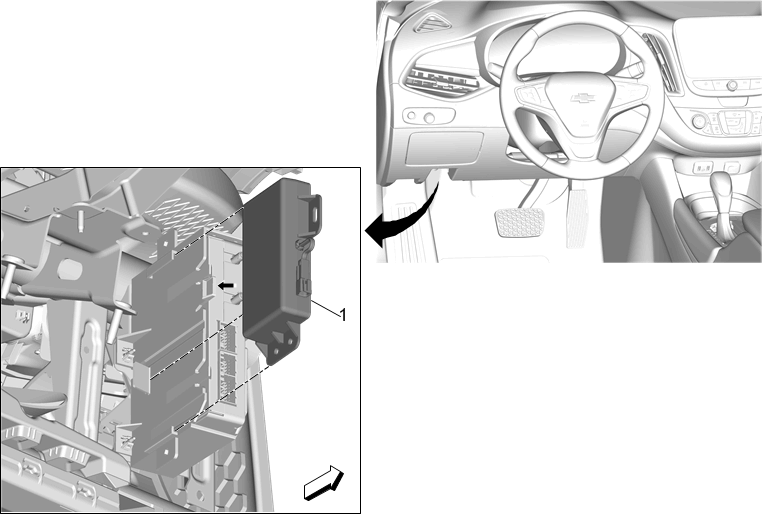

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Communication Interface Module Battery Procedure Push the retaining tab outward and slide the module downward. Disconnect the electrical connector. Control Module References for programming and setup information, if required.
