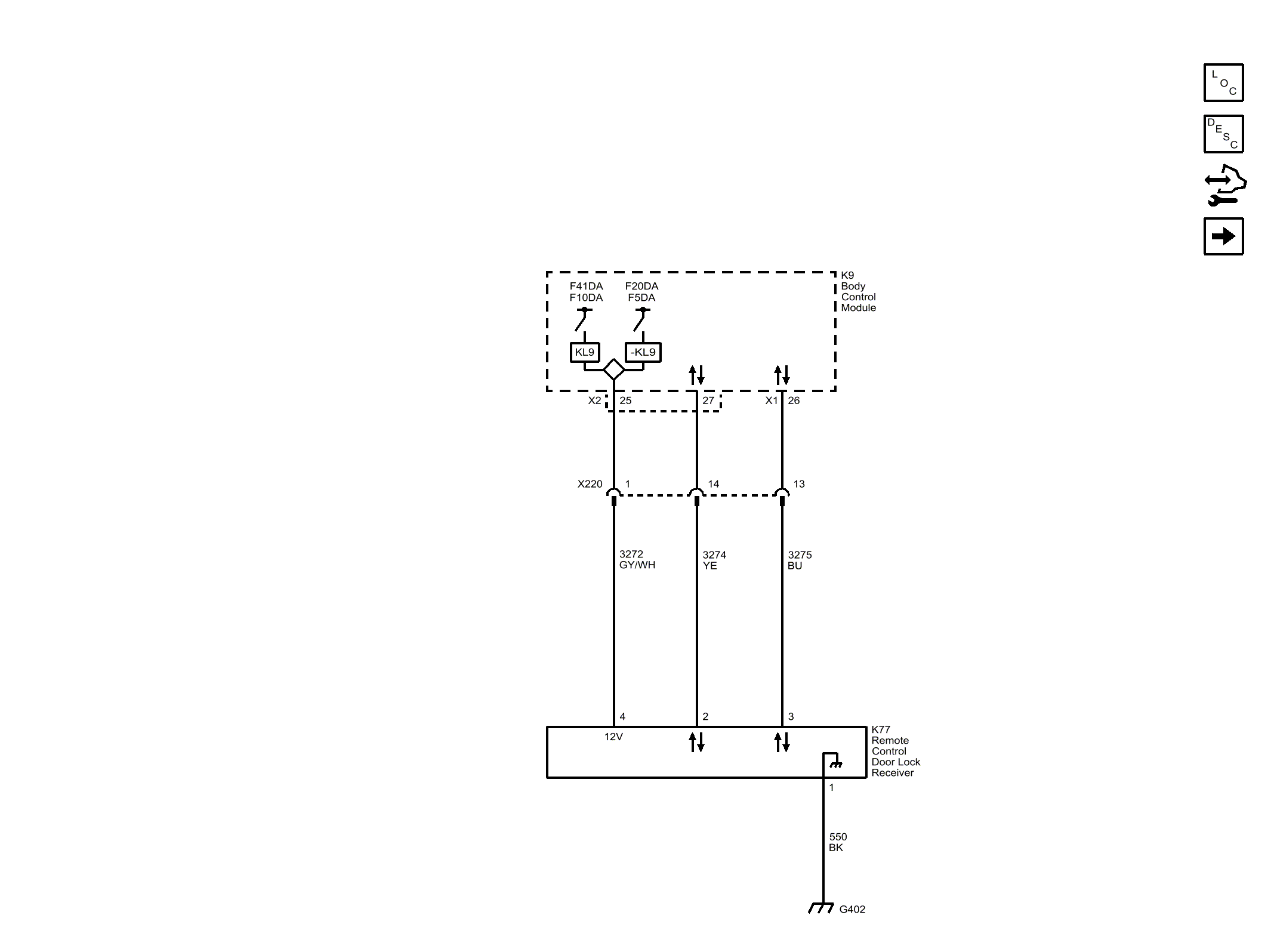

Home › Chevrolet › 2017 › Malibu LS › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
