Engine Components - Left Rear (LFV)

Items
1: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust (LFV)B23E Camshaft Position Sensor - Exhaust (LKN/LTG)
2: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFV)T8D Ignition Coil 4 (LKN)T8D Ignition Coil 4 (LTG)
3: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LFV)B52A Heated Oxygen Sensor 1 (LKN)B52A Heated Oxygen Sensor 1 (LTG)
4: T8C Ignition Coil 3 T8C Ignition Coil 3 (LFV)T8C Ignition Coil 3 (LKN)T8C Ignition Coil 3 (LTG)
5: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFV)T8B Ignition Coil 2 (LKN)T8B Ignition Coil 2 (LTG)
6: T8A Ignition Coil 1 T8A Ignition Coil 1 (LFV)T8A Ignition Coil 1 (LKN)T8A Ignition Coil 1 (LTG)
7: Q38 Throttle Body
8: B65 Intake Manifold Pressure and Air Temperature Sensor (LFV) B65 Intake Manifold Pressure and Air Temperature Sensor (LFV)
9: G13 Generator (LFV/LTG) G13 Generator X2 (LFV)G13 Generator X1 (LTG/LFV)
10: M64 Starter Motor (LFV/LTG) M64 Starter Motor X1 (LFV)
11: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFV/LKN)B26 Crankshaft Position Sensor (LTG)
12: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (LFV)
13: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFV)B34 Engine Coolant Temperature Sensor (LKN/LTG)

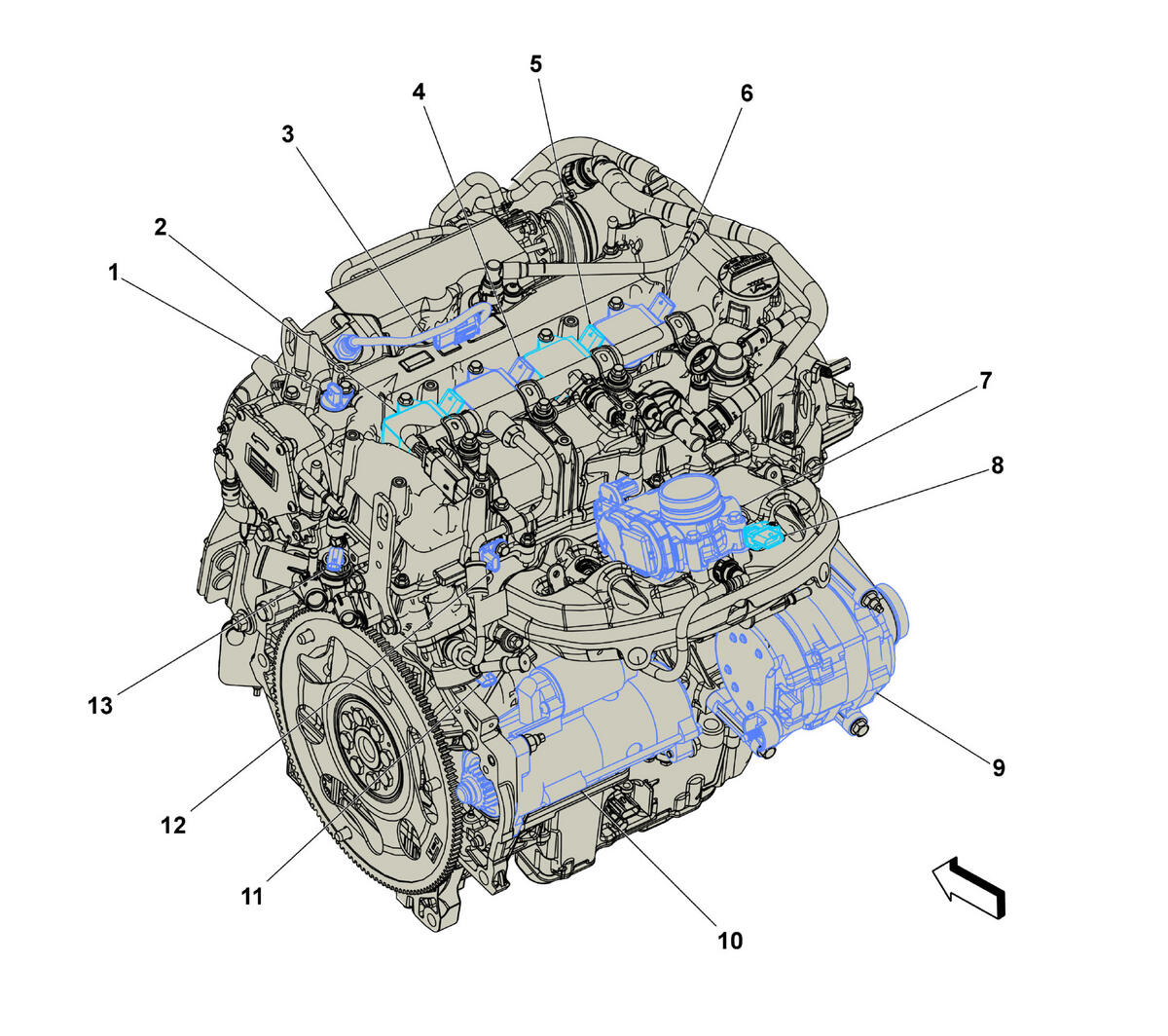

Fig 1: Engine Components - Left Rear (LFV)

Courtesy of GENERAL MOTORS COMPANY
