Engine Components - Left Rear (LTG)

Items
1: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFV)T8D Ignition Coil 4 (LKN)T8D Ignition Coil 4 (LTG)
2: T8C Ignition Coil 3 T8C Ignition Coil 3 (LFV)T8C Ignition Coil 3 (LKN)T8C Ignition Coil 3 (LTG)
3: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFV)T8B Ignition Coil 2 (LKN)T8B Ignition Coil 2 (LTG)
4: T8A Ignition Coil 1 T8A Ignition Coil 1 (LFV)T8A Ignition Coil 1 (LKN)T8A Ignition Coil 1 (LTG)
5: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LFV/LTG)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LKN)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG)
6: B68A Knock Sensor 1 (LTG) B68A Knock Sensor 1 (LTG)
7: Q38 Throttle Body
8: B74 Manifold Absolute Pressure Sensor (LTG/LKN) B74 Manifold Absolute Pressure Sensor (LKN)B74 Manifold Absolute Pressure Sensor (LTG)
9: B35 Engine Oil Level Switch (LTG) B35 Engine Oil Level Switch
10: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFV/LKN)B26 Crankshaft Position Sensor (LTG)
11: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LFV/LKN)B37B Engine Oil Pressure Sensor (LTG)
12: B68B Knock Sensor 2 (LTG) B68B Knock Sensor 2 (LTG)
13: M64 Starter Motor (LFV/LTG) M64 Starter Motor X1 (LFV)
14: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFV)G18 High Pressure Fuel Pump (LKN)G18 High Pressure Fuel Pump (LTG/LFV)
15: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (LFV)
16: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFV)B34 Engine Coolant Temperature Sensor (LKN/LTG)

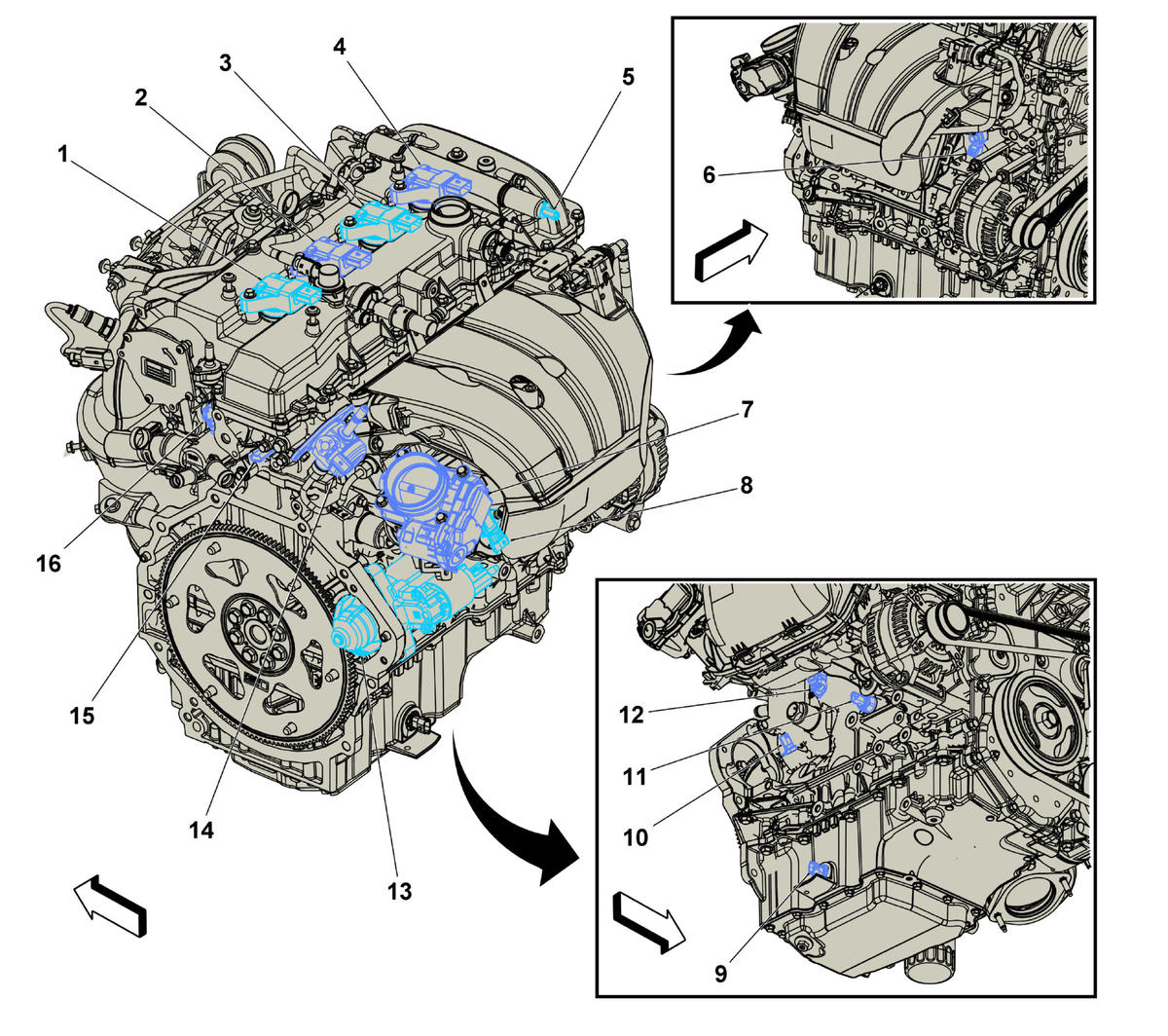

Fig 1: Engine Components - Left Rear (LTG)

Courtesy of GENERAL MOTORS COMPANY
