Engine Components - Rear (LKN)

Items
1: Q38 Throttle Body
2: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LFV/LKN)B37B Engine Oil Pressure Sensor (LTG)
3: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LFV/LTG)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LKN)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG)
4: G1 A/C Compressor (LKN) G1 A/C Compressor X1 (HP4)
5: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFV/LKN)B26 Crankshaft Position Sensor (LTG)
6: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (LFV)
7: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFV)G18 High Pressure Fuel Pump (LKN)G18 High Pressure Fuel Pump (LTG/LFV)
8: B74 Manifold Absolute Pressure Sensor (LTG/LKN) B74 Manifold Absolute Pressure Sensor (LKN)B74 Manifold Absolute Pressure Sensor (LTG)
9: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve

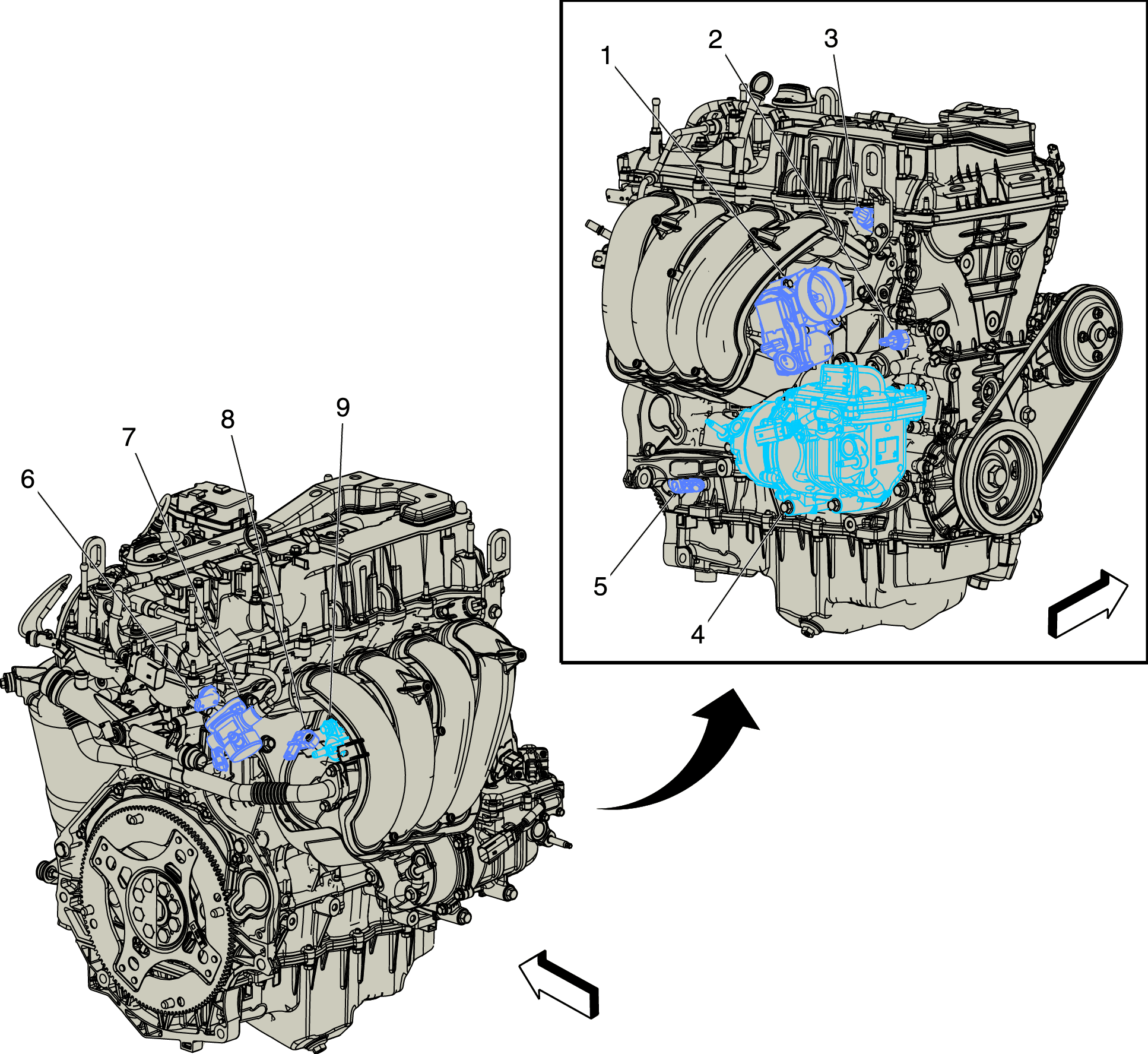

Fig 1: Engine Components - Rear (LKN)

Courtesy of GENERAL MOTORS COMPANY
