Engine Components - Right Front (LTG)

Items
1: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
2: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LFV)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LKN)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG)
3: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LFV)B52A Heated Oxygen Sensor 1 (LKN)B52A Heated Oxygen Sensor 1 (LTG)
4: Q40 Turbocharger Bypass Solenoid Valve (LTG/LFV) Q40 Turbocharger Bypass Solenoid Valve
5: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LFV)B52B Heated Oxygen Sensor 2 (LKN/LTG)
6: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust (LFV)B23E Camshaft Position Sensor - Exhaust (LKN/LTG)
7: Q46 A/C Compressor Solenoid Valve (LTG/LFV) Q46 A/C Compressor Solenoid Valve (LTG/LFV)
8: G1 A/C Compressor (LKN) G1 A/C Compressor X1 (HP4)
9: Q2 A/C Compressor Clutch (LFV/LTG) Q2 A/C Compressor Clutch (LTG/LFV)
10: Q42 Turbocharger Wastegate Solenoid Valve (LTG/LFV) Q42 Turbocharger Wastegate Solenoid Valve (LTG/LFV)
11: G13 Generator (LFV/LTG) G13 Generator X2 (LFV)G13 Generator X1 (LTG/LFV)

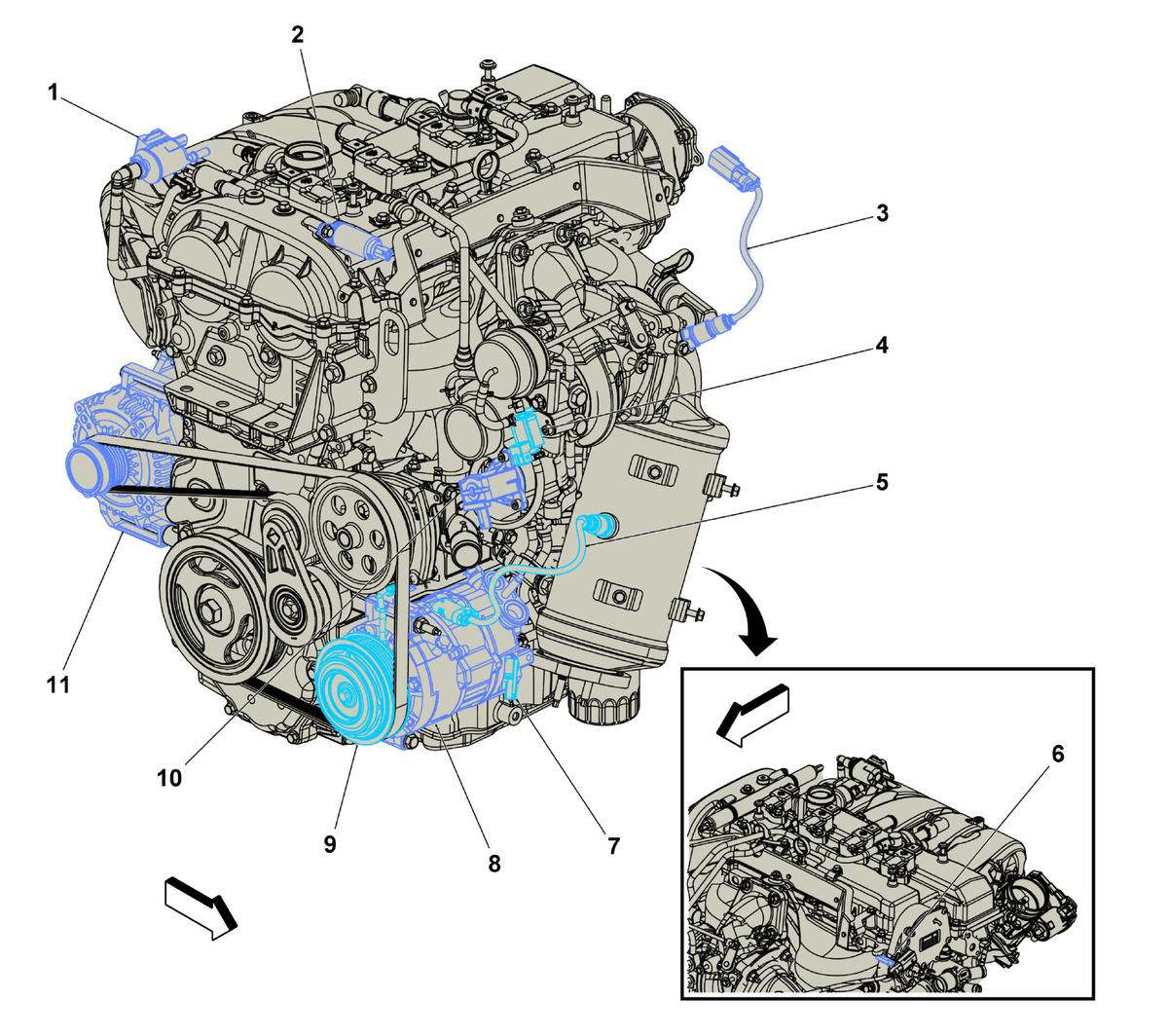

Fig 1: Engine Components - Right Front (LTG)

Courtesy of GENERAL MOTORS COMPANY
