Installation Procedure

O-Ring (2) - Install New

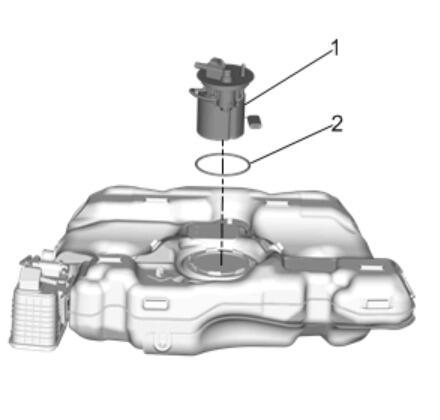

Fig 1: Fuel Tank Fuel Pump Module
Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Fuel Pump Module (1) - Install
Fuel Pump Vent Pipe (1) - Connect Plastic Collar Quick Connect Fitting Service

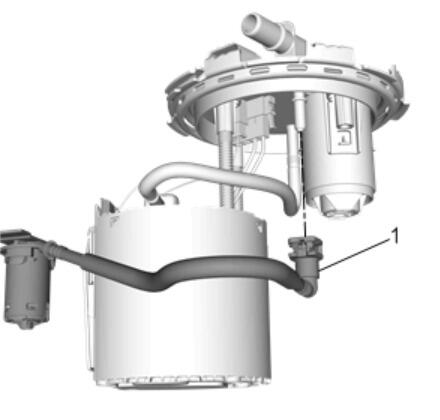

Fig 2: Fuel Pump Vent Pipe
Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Lock Ring (1) - Install CH 45722 Fuel Sender Lock Ring Wrench

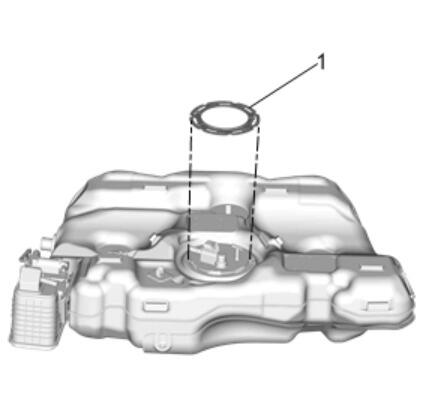

Fig 3: Fuel Pump Lock Ring
Courtesy of GENERAL MOTORS COMPANY
Fuel and EVAP Pipe (2) - Connect [2x] Plastic Collar Quick Connect Fitting Service

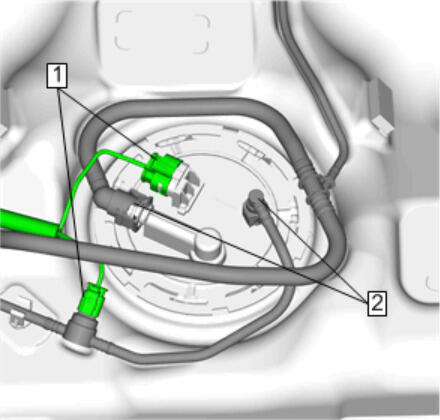

Fig 4: Electrical Connector
Courtesy of GENERAL MOTORS COMPANY
Electrical Connector (1) @ Fuel Tank Fuel Pump Module - Connect [2x]
Fuel Tank Replacement - Install
