Fuel Tank Protector Replacement

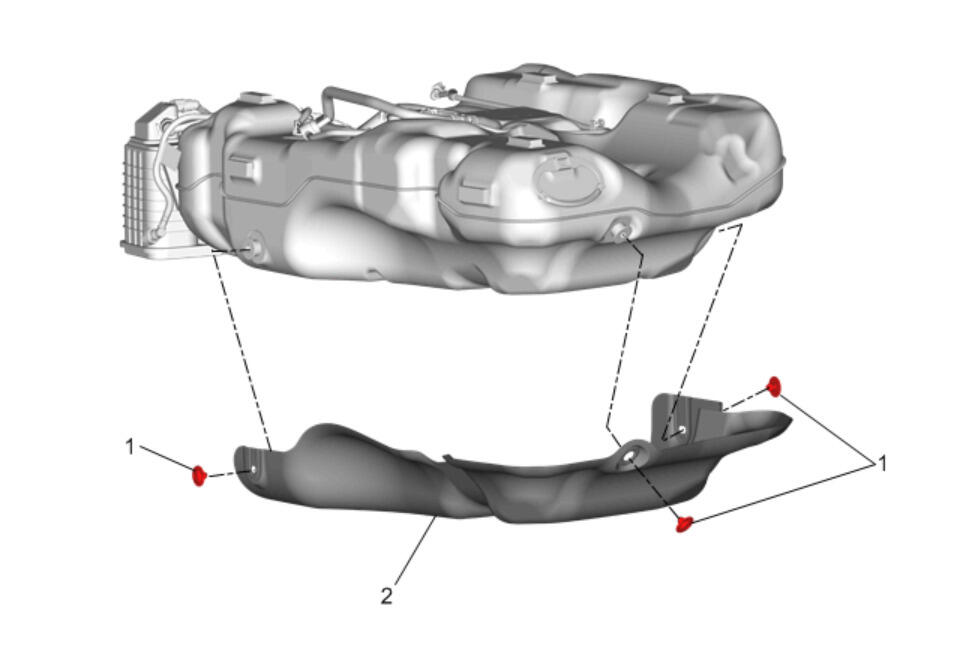

Fig 1: Fuel Tank Protector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Fuel Tank Strap @ Left Side - Remove Fuel Tank Replacement
1	Fuel Tank Protector Retainer [3x] CAUTION: Refer to Fastener Caution .
2	Fuel Tank Protector
