Installation Procedure

Place a suitable adjustable jack under the fuel tank.

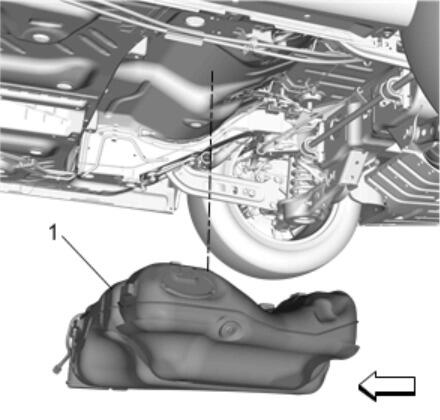

Fig 1: Fuel Tank
Courtesy of GENERAL MOTORS COMPANY
Fuel Tank (1) - Install
Fuel Tank Strap (2) - Install [2x]

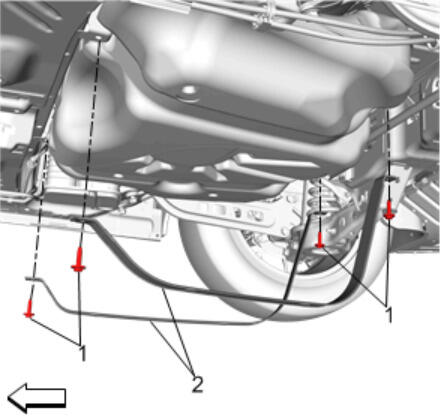

Fig 2: Fuel Tank Strap Bolt
Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Strap Bolt (1) - Install [4x] 27 N.m (20 lb ft)
CAUTION: Refer to Fastener Caution .
Evaporative Emission Canister Filter Pipe (6) @ Evaporative Emission Canister (5) - Connect Plastic Collar Quick Connect Fitting Service

Fig 3: Evaporative Emission Canister Purge Pipe
Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe (3) @ Fuel Feed Pipe (4) - Connect Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Purge Pipe (1) @ Evaporative Emission Pipe (2) - Connect Plastic Collar Quick Connect Fitting Service
Fuel Tank Filler Hose (5) @ Fuel Tank (4) - Install

Fig 4: Wiring Harness
Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Hose Clamp (6) - Install 4 N.m (35 lb in)
Fuel Tank Vent Pipe (2) @ Fuel Tank Filler Pipe (3) - Connect Plastic Collar Quick Connect Fitting Service
Wiring Harness (1) @ Retainer (7) - Install [2x]
Wiring Harness (1) - Connect
Exhaust Muffler Replacement (Dual Exhaust)Exhaust Muffler Replacement (Single Exhaust) - Install
{If equipped} Underbody Rear Air Deflector Replacement - Right Side (XFE) - Install
Refill the fuel tank.
Inspect for fuel leaks.
