Throttle Body Assembly Replacement

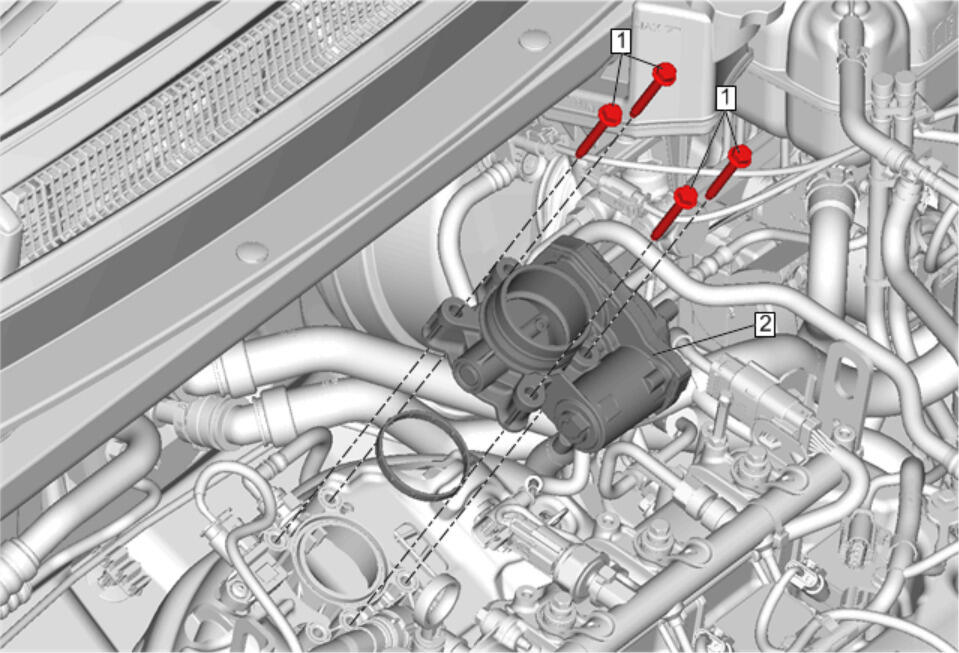

Fig 1: Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Charge Air Cooler Outlet Air Tube Replacement
1	Throttle Body Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the electrical connector. Remove and DISCARD the gasket. Perform the throttle or idle learn. Refer to Throttle or Idle Learn

Callout

Component Name

Preliminary Procedures

Throttle Body Bolt [4x]

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Throttle Body

Procedure
