Camshaft Position Sensor Replacement - Intake

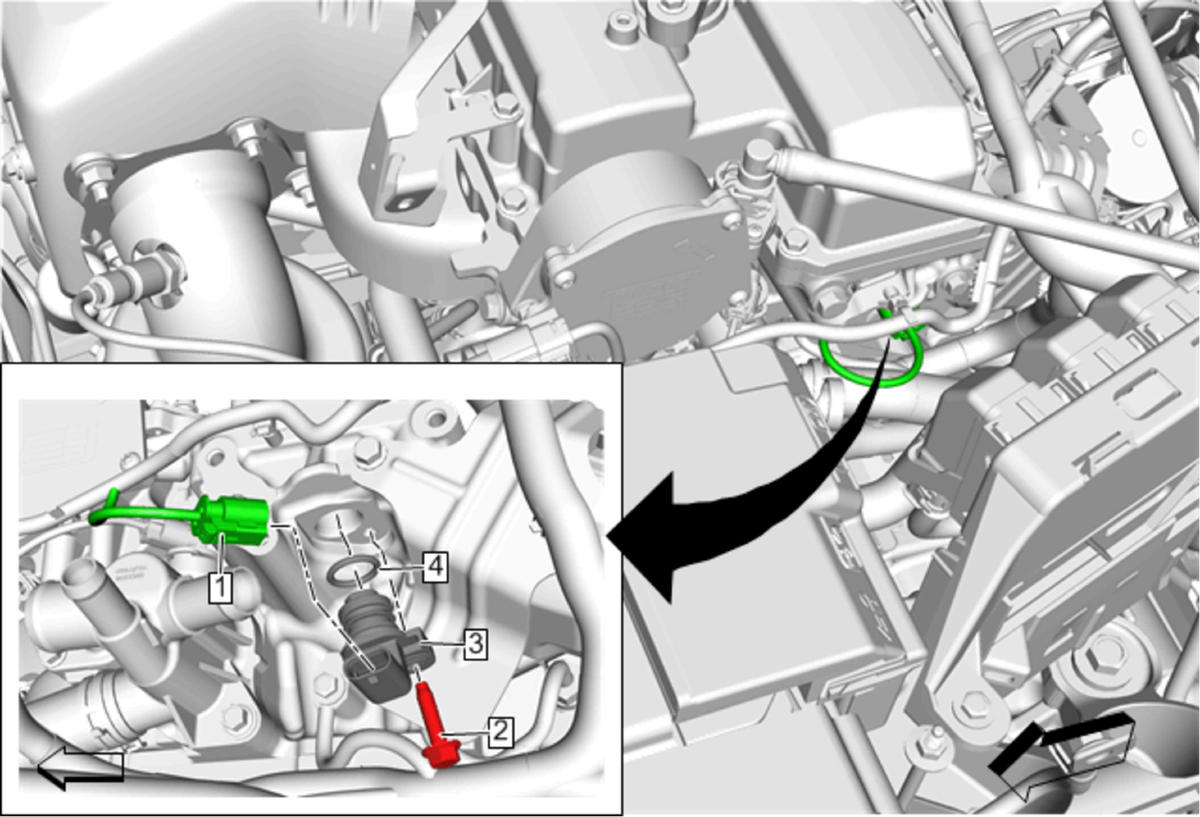

Fig 1: Camshaft Position Sensor - Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Charge Air Cooler Outlet Air Tube Replacement
1	Electrical Connector Procedure Disconnect the electrical connector.
2	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Camshaft Position Sensor
4	Camshaft Position Sensor Seal Procedure Install a NEW camshaft position sensor seal. Lubricate the NEW camshaft position sensor seal with clean engine oil.
