Ride Control Switch Replacement

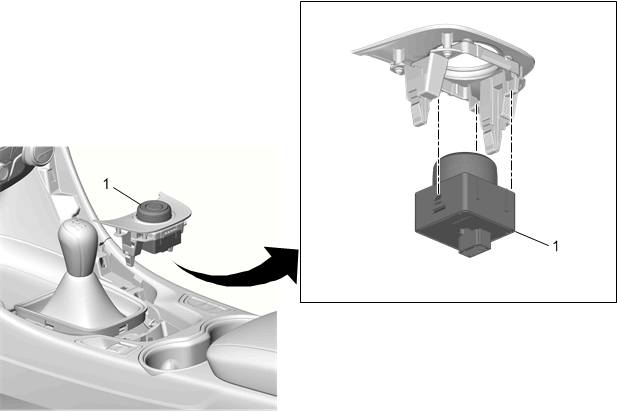

Fig 1: Ride Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Accessory Switch Mount Plate Replacement (Left and Right)Front Floor Console Accessory Switch Mount Plate Replacement (Center) - Center
1	Ride Control Switch Procedure  Release the plastic retaining tabs.
