Power, Ground, Serial Data, Alarm, Rear Sensors and Controls

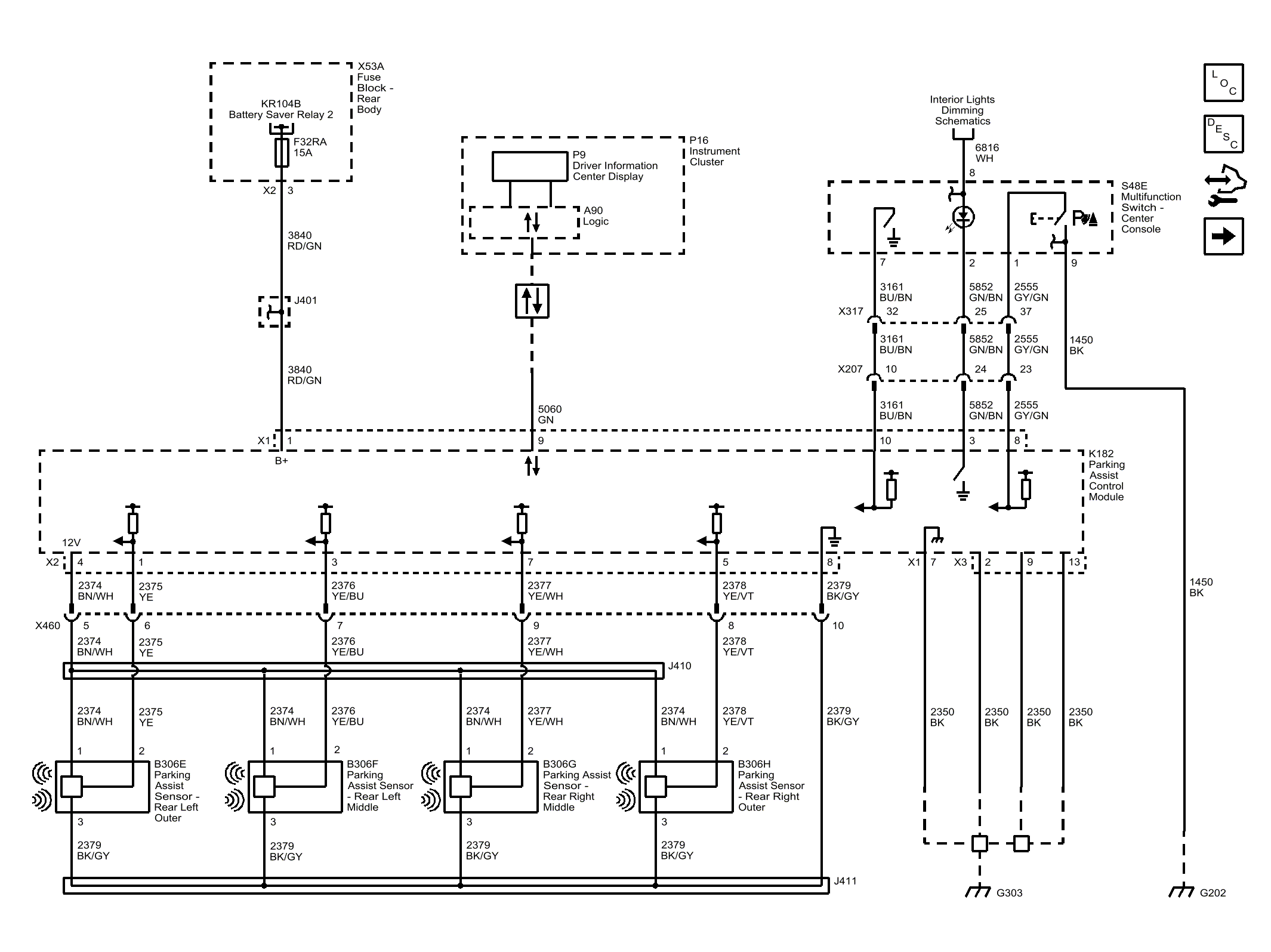

Fig 1: Power, Ground, Serial Data, Alarm, Rear Sensors and Controls

GM4535038

Courtesy of GENERAL MOTORS COMPANY
