Audio Disc Player and USB Receptacle Replacement
Audio Disc Player and USB Receptacle Replacement

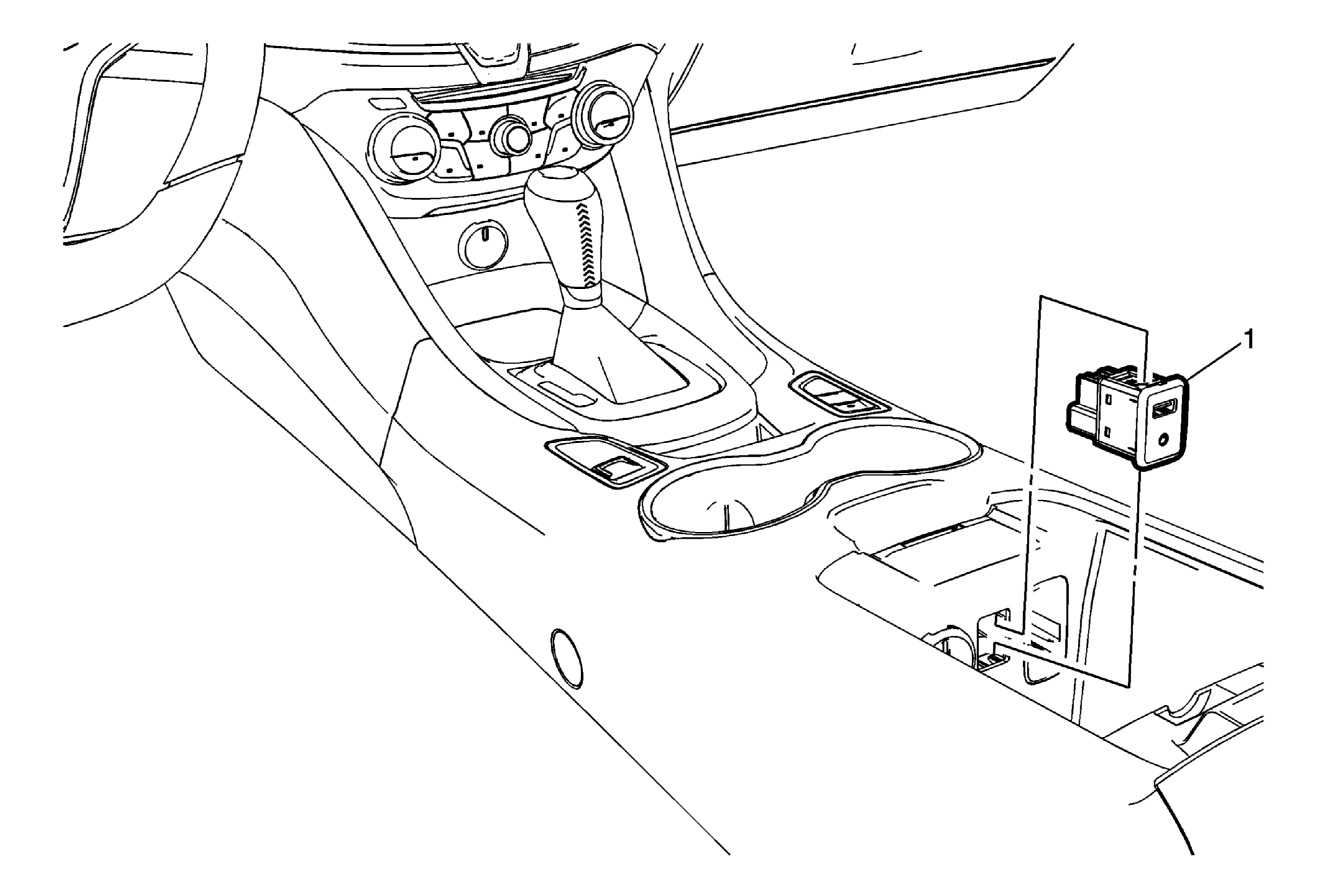

Fig 1: Audio Disc Player and USB Receptacle
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Audio Player and USB Receptacle
Procedure
Using a small flat bladed tool, release the receptacle.
Disconnect the electrical connector.
