Radio Antenna Base Replacement

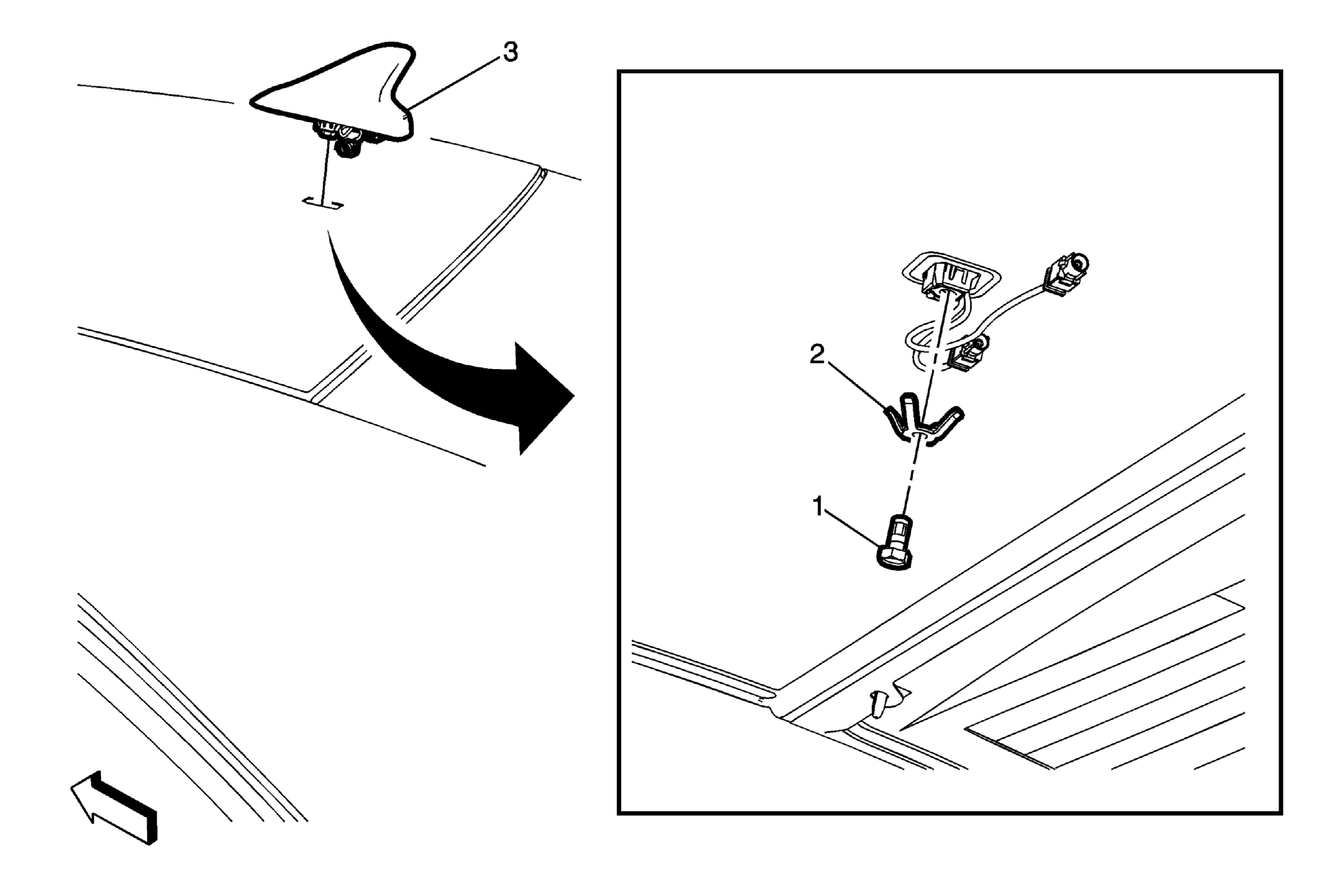

Fig 1: Radio Antenna Base

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement .
1	Radio Antenna Base Fastener CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Radio Antenna Base Retainer Procedure  Install a new retainer.
3	Radio Antenna Base Procedure  Disconnect the electrical connectors.
