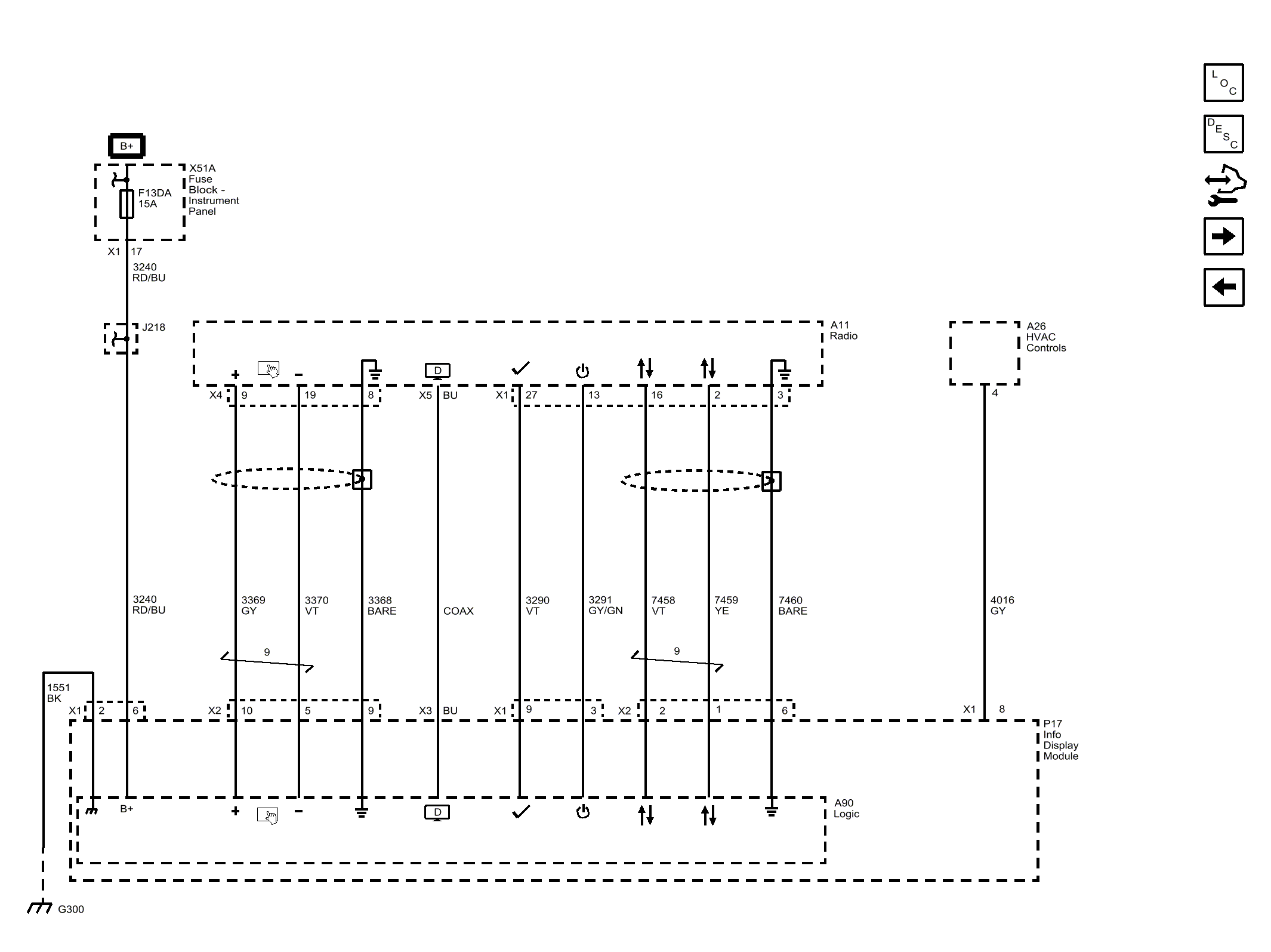

Home › Chevrolet › 2017 › SS Automatic Trans › Repair and Diagnosis › Accessories & Equipment › Entertainment Systems › Cellular System, Entertainment System, And Navigation System › Schematic Wiring Diagrams › Radio/Navigation System Wiring Schematics › Radio Controls
