Front Position Lamp Bulb Socket Replacement

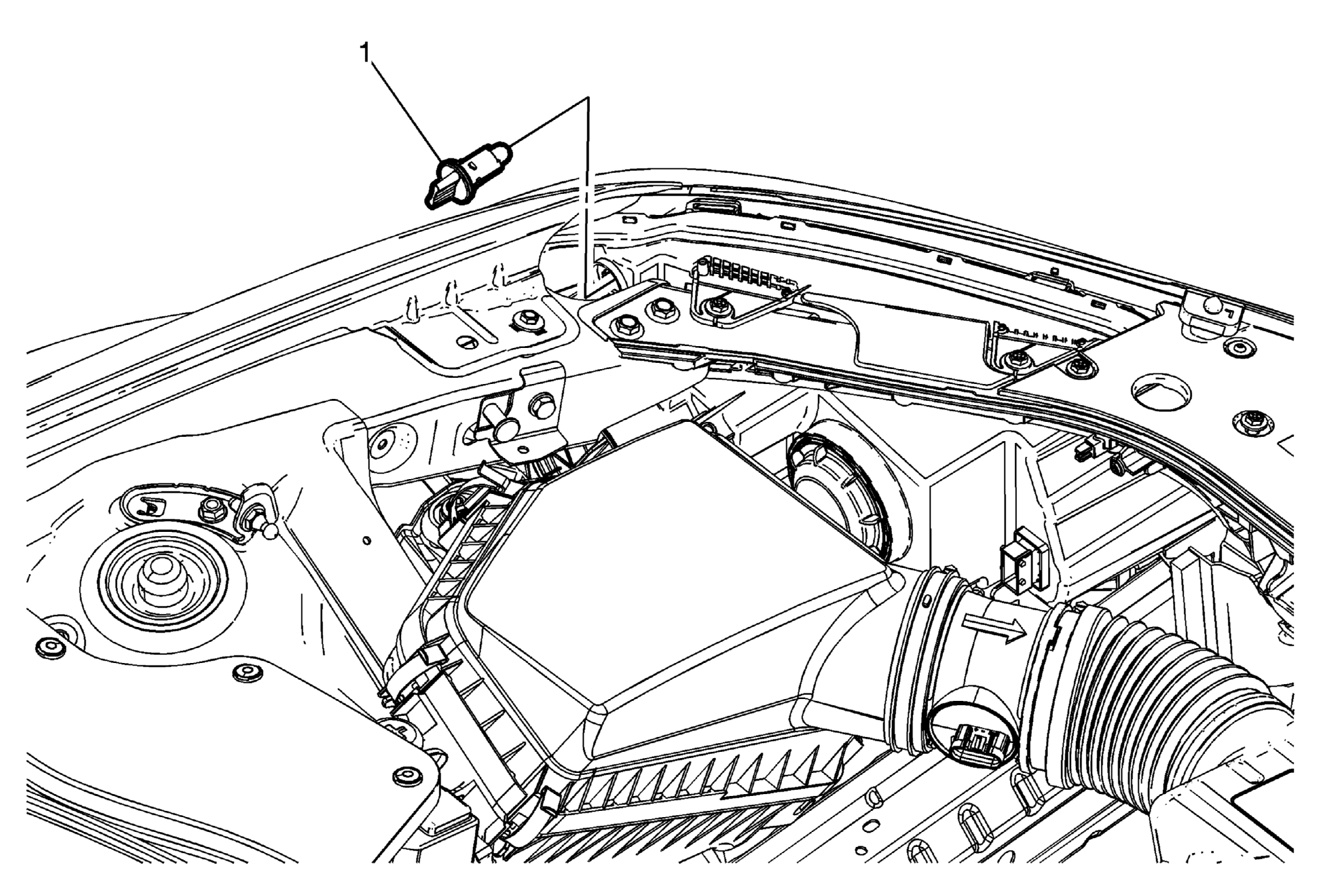

Fig 1: Front Position Lamp Bulb Socket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Open and support the hood.
1	Front Position Lamp Bulb Socket Procedure  Rotate the front position lamp bulb socket counter-clockwise and remove from the headlamp.
