Windshield Washer Solvent Container Replacement

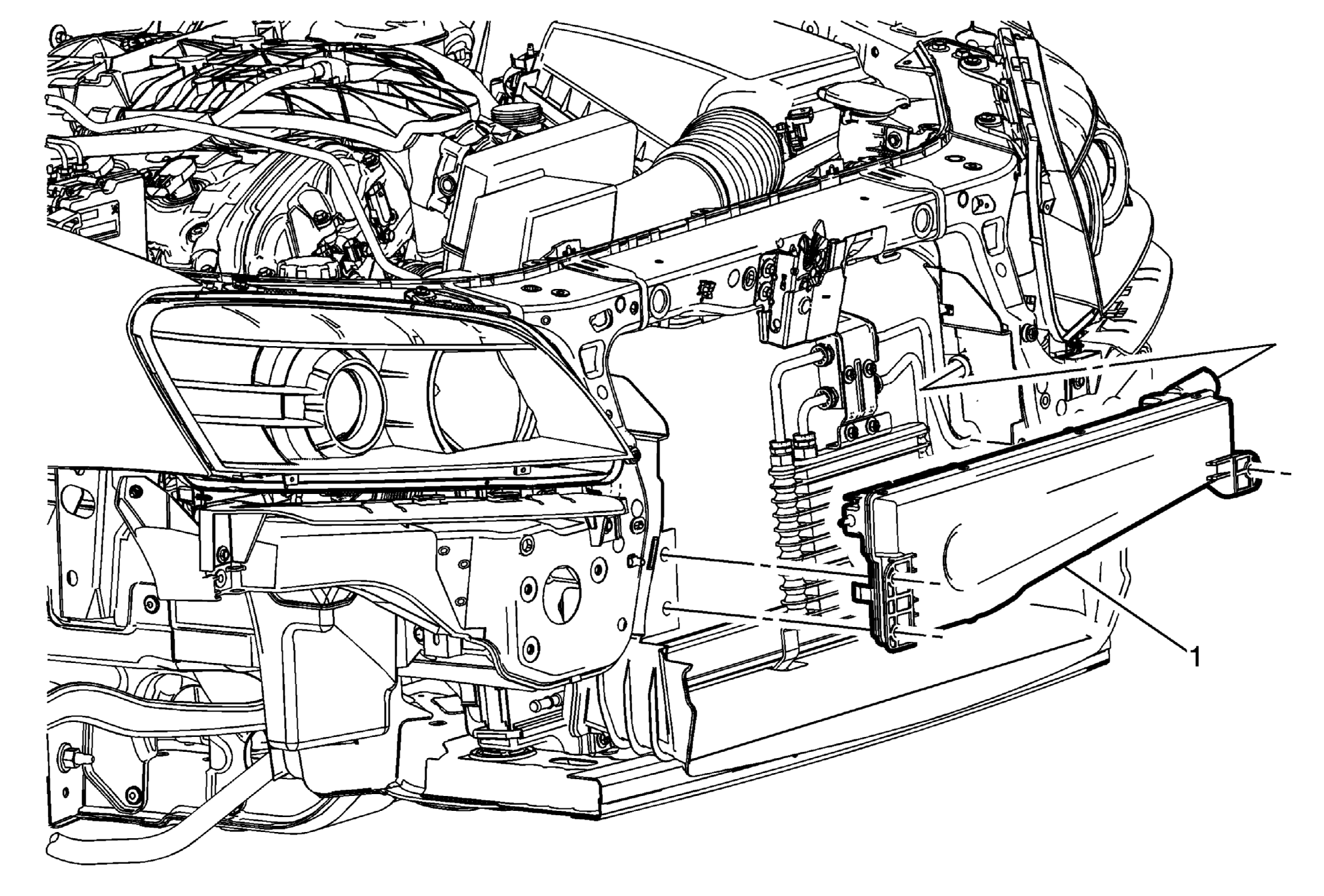

Fig 1: Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
1	Windshield Washer Solvent Container Procedure Place a clean suitable container on the floor under the windshield washer solvent container to contain any loss washer solvent. Disconnect the windshield washer hose and the vent hose from the washer solvent container. Disconnect the electrical connector to the windshield washer pump. Carefully pull inward and rotate the windshield washer solvent container from the windshield washer solvent container bracket at the same time, disengaging the filler tube from the container. Lower the washer container and remove the container from the vehicle. Empty the washer solvent from the container into a clean suitable container. Transfer parts as needed.

Callout

Component Name

Preliminary Procedure
Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .

Windshield Washer Solvent Container

Procedure

Place a clean suitable container on the floor under the windshield washer solvent container to contain any loss washer solvent.
Disconnect the windshield washer hose and the vent hose from the washer solvent container.
Disconnect the electrical connector to the windshield washer pump.
Carefully pull inward and rotate the windshield washer solvent container from the windshield washer solvent container bracket at the same time, disengaging the filler tube from the container.
Lower the washer container and remove the container from the vehicle.
Empty the washer solvent from the container into a clean suitable container.
Transfer parts as needed.
