Windshield Wiper Blade Replacement

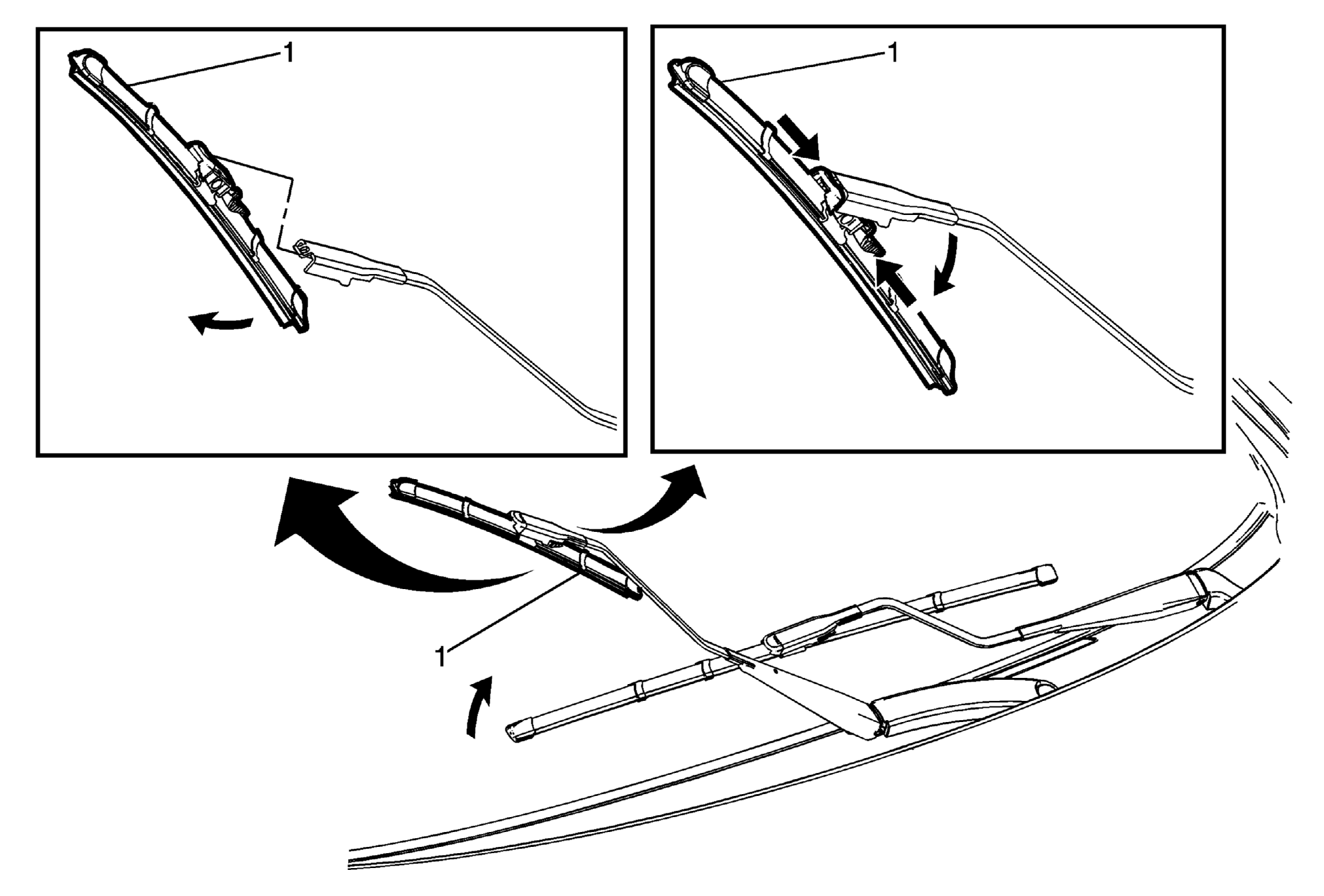

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Wiper Blade Procedure Lift the wiper arms away from the windshield to the upright position. Press inward on the wiper arm blade side clips to release the wiper blade from the arm. Slide the blade upward to remove. NOTE: Ensure that the wiper arms remain at rest and Do Not spring back onto the windshield.

Callout

Component Name

Windshield Wiper Blade

Procedure

Lift the wiper arms away from the windshield to the upright position.
Press inward on the wiper arm blade side clips to release the wiper blade from the arm.
Slide the blade upward to remove.

NOTE:

Ensure that the wiper arms remain at rest and Do Not spring back onto the windshield.
