SS Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System And Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Power, Ground and Data Communications
Power, Ground and Data Communications

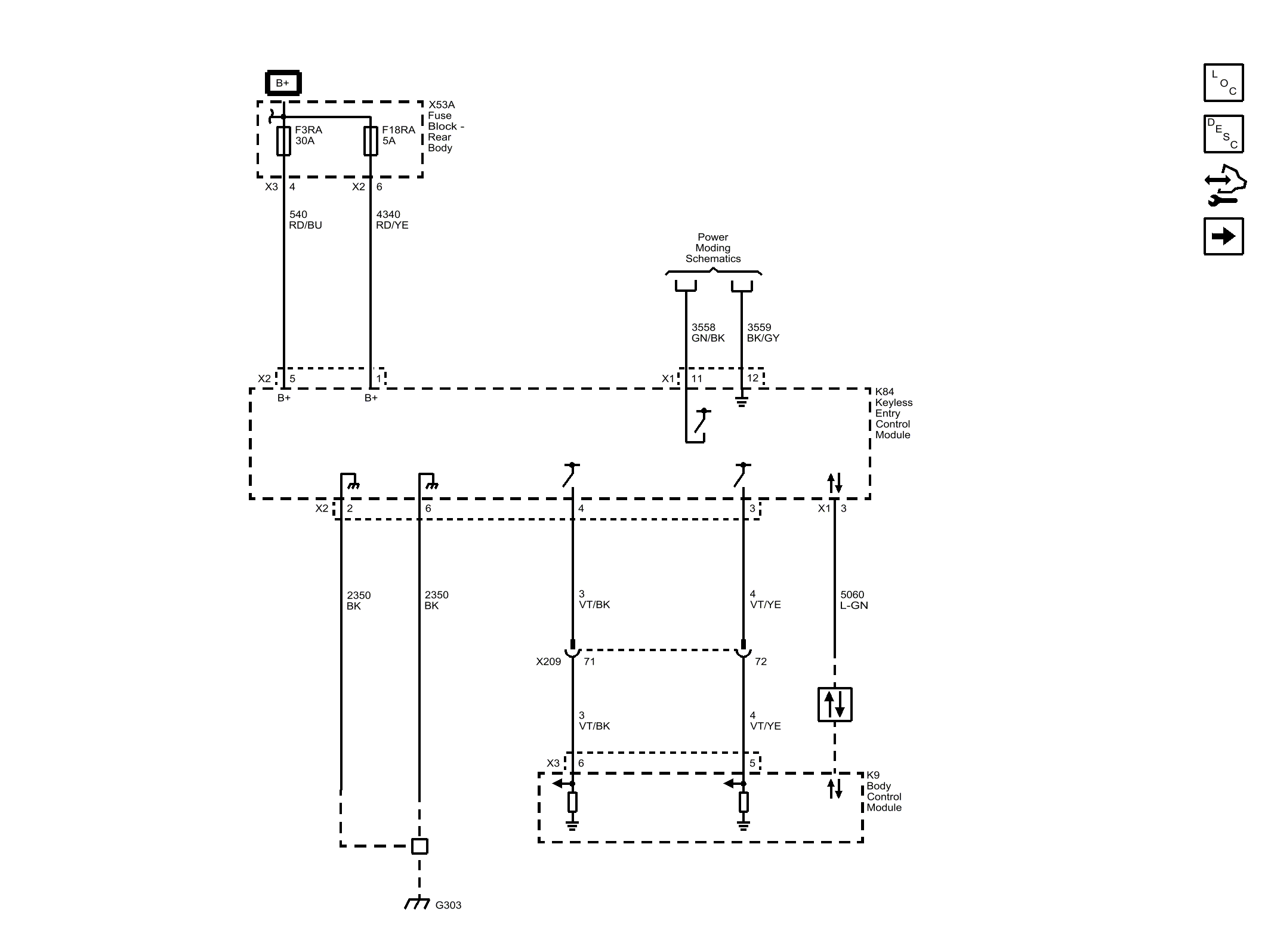

Fig 1: Power, Ground and Data Communications
