Front Crossmember Bracket Replacement

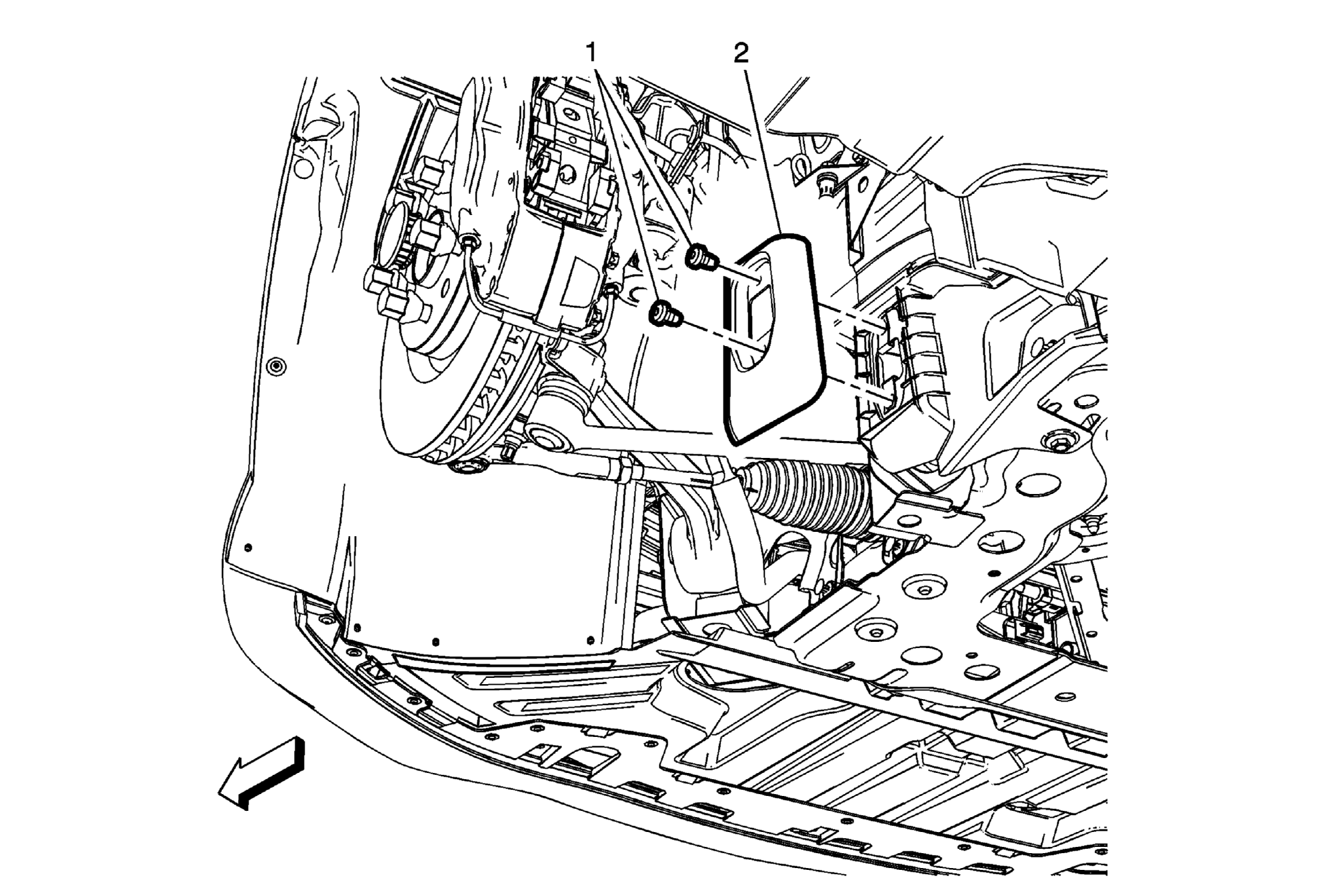

Fig 1: Front Crossmember Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the left front tire. Refer to Tire and Wheel Removal and Installation .
1	Front Crossmember Bracket Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Front Crossmember Bracket
