Front Wheelhouse Splash Shield Replacement

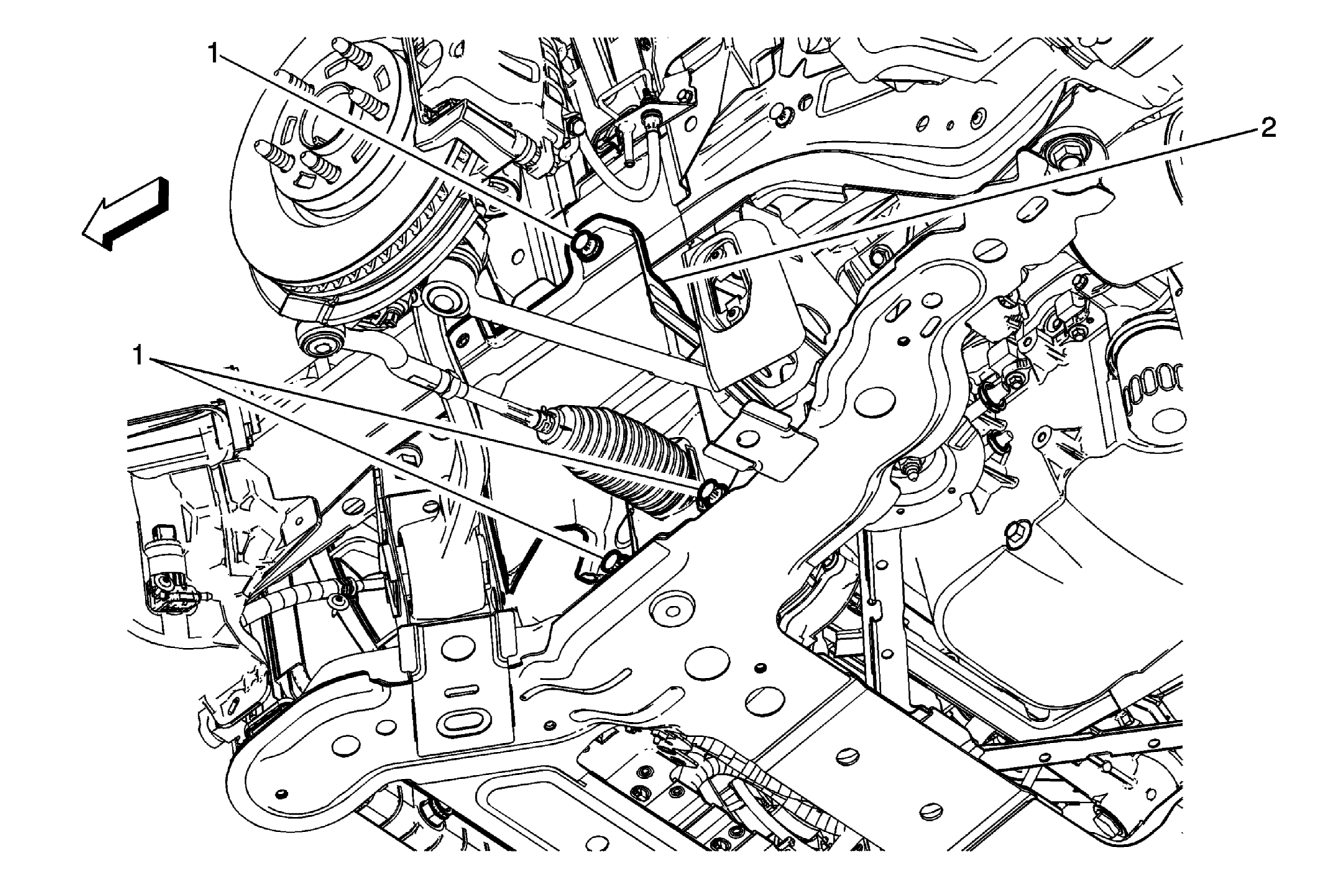

Fig 1: Front Wheelhouse Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Wheelhouse Splash Shield Retainers (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Front Wheelhouse Splash Shield
