Outside Rearview Mirror Glass Replacement

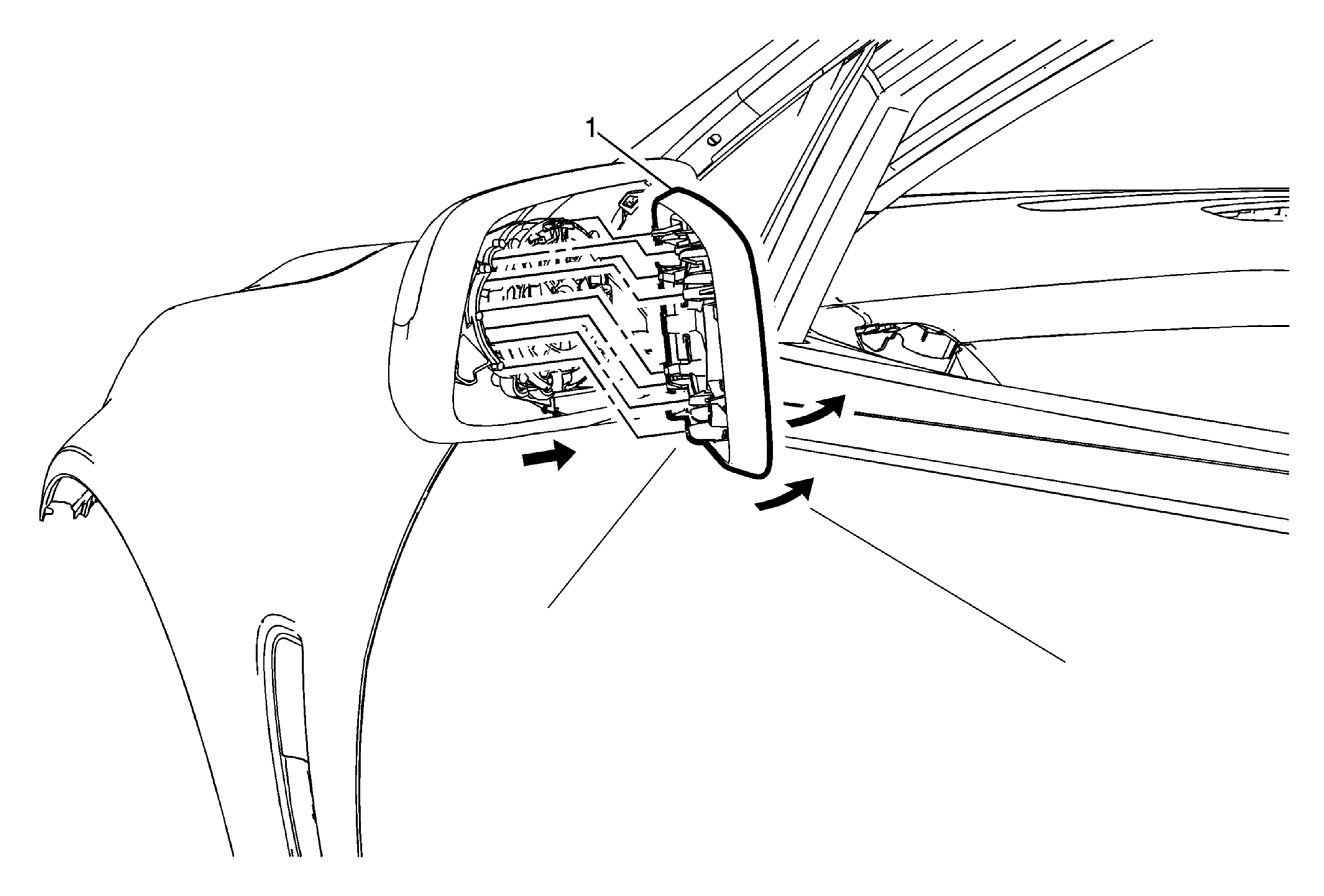

Fig 1: Outside Rearview Mirror Glass

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Glass WARNING: Refer to Glass and Sheet Metal Handling Warning . Procedure Grasp the outer edge of the mirror glass and release it from the backing by pulling outward. Disconnect electrical connector. NOTE: Inspect the outside rearview mirror for proper operation.
