Outside Rearview Mirror Housing Cover Replacement

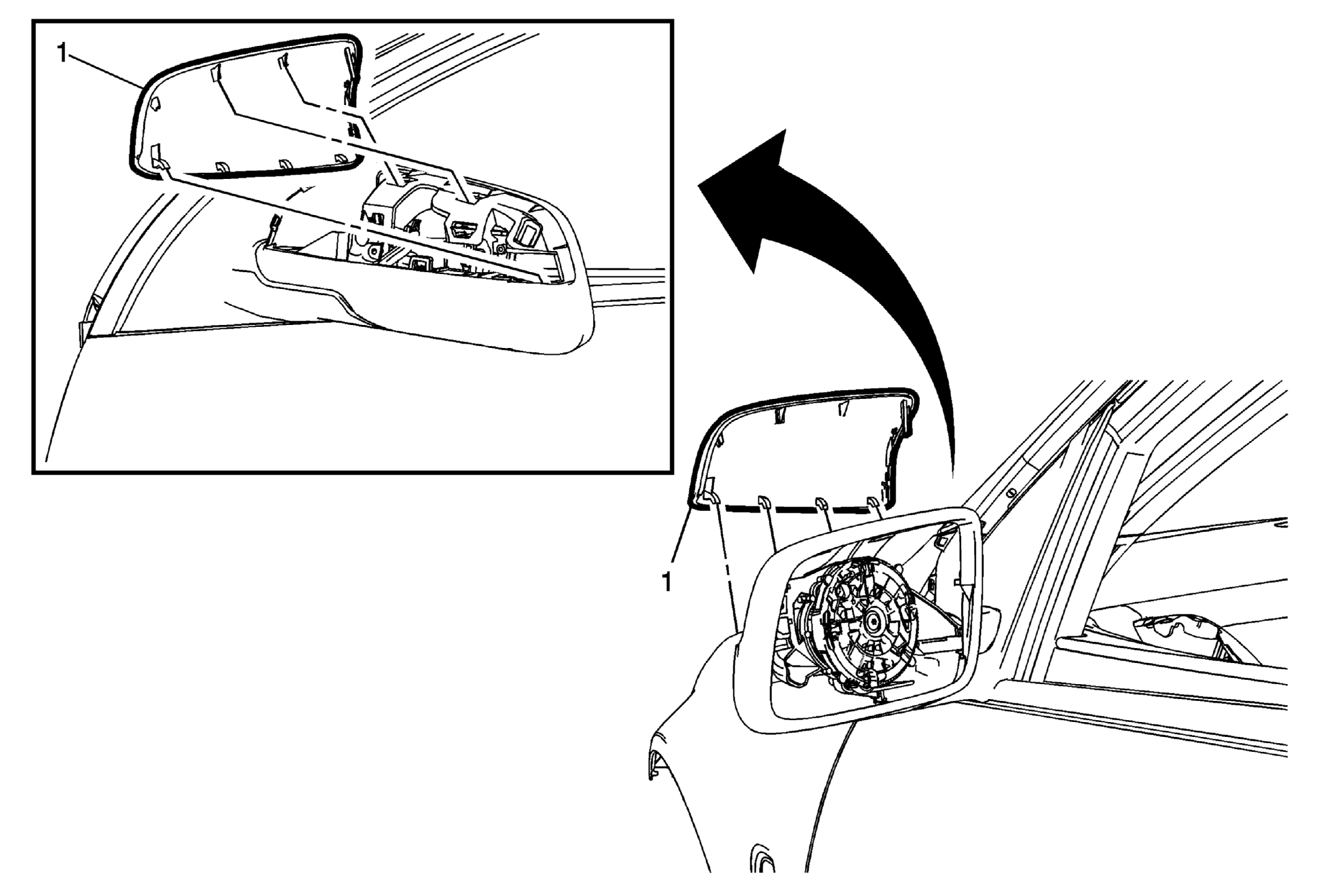

Fig 1: Outside Rearview Mirror Housing Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Housing Cover Procedure Firmly grasp the lower front edge of the mirror cover and lift upwards then outwards from the mirror to release the retainers. NOTE: Inspect the outside rearview mirror for proper operation.
