Front Side Door Window Regulator Motor Replacement

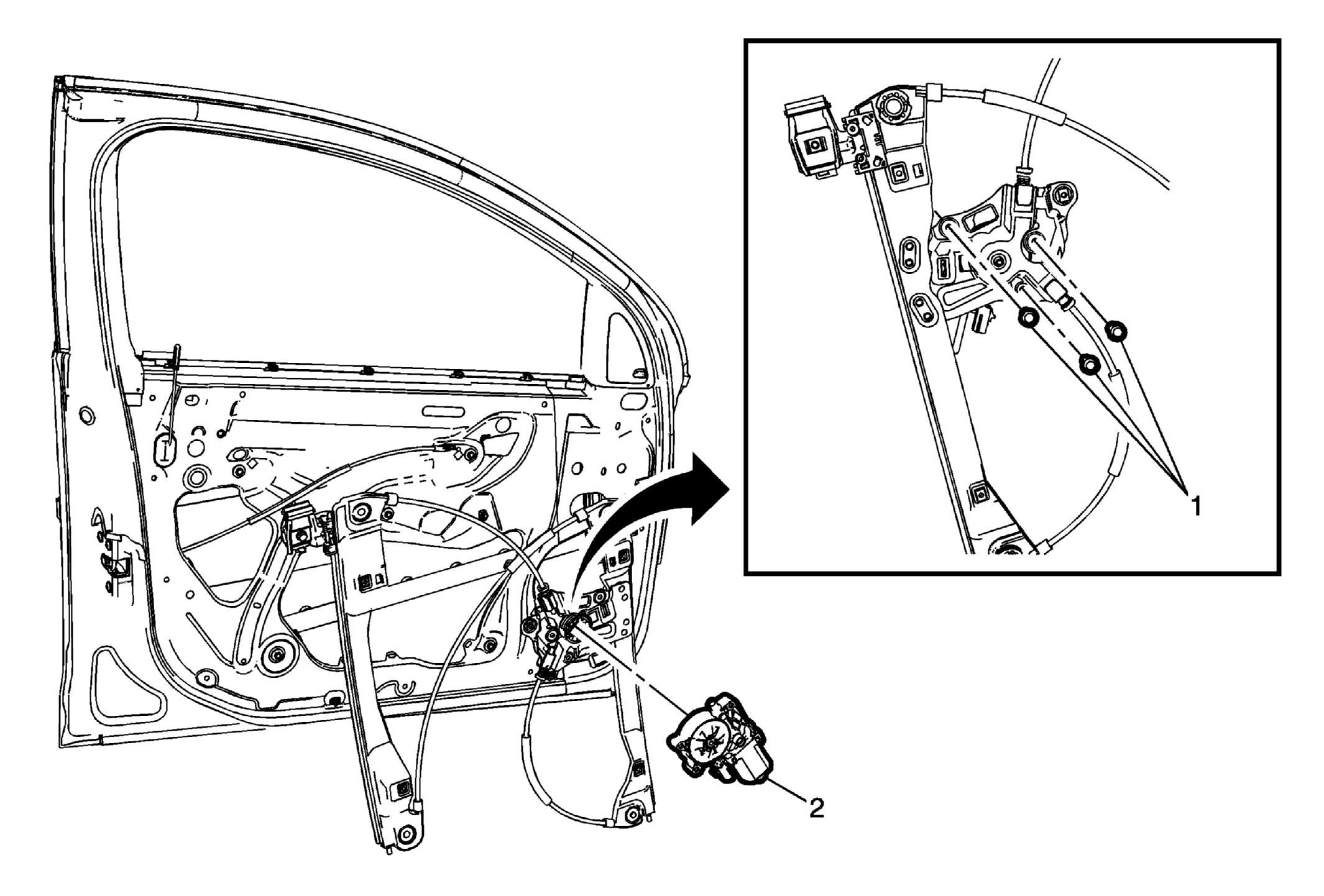

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement . |
|
| 1 | Front Side Door Window Regulator Motor Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 11 N.m (97 lb in) |
| 2 | Front Side Door Window Regulator Motor Procedure After replacing the window regulator motor, it is necessary to reprogram the motor. Refer to Window Motor Programming - Express Function .
NOTE:
Inspect the door window for proper operation before installing the door trim. |
