Rear Side Door Window Inner Sealing Strip Replacement

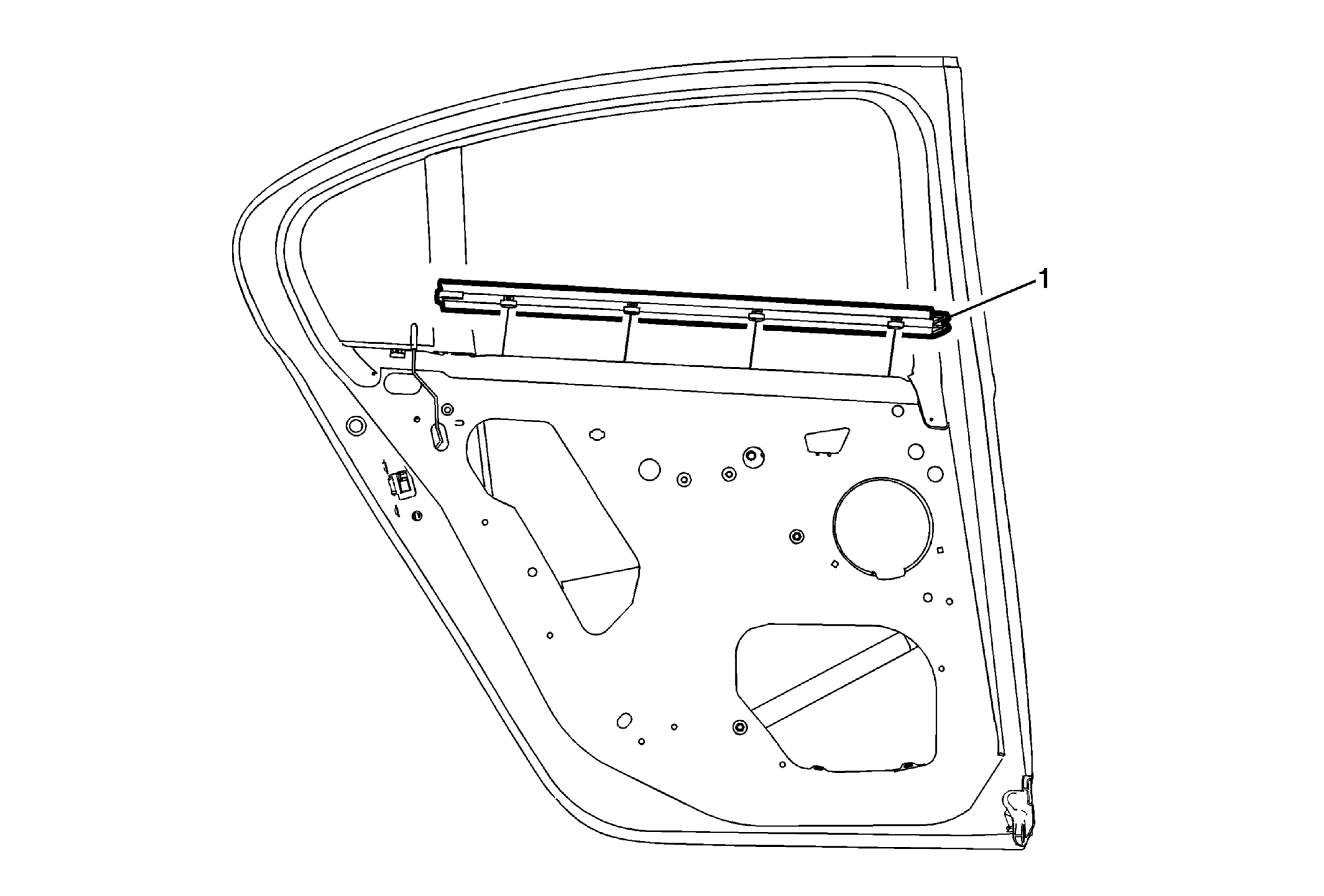

Fig 1: Rear Side Door Window Inner Sealing Strip

GM3217760

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement
Remove the rear side window frame cover. Refer to Rear Side Door Window Frame Cover Replacement .

1

Rear Side Door Window Inner Sealing Strip

Procedure

Lower the window to the full down position.
Using the appropriate tool, lift one end up and pull away from the door flange to remove.
Install the rear side door window inner sealing strip to the door flange pushing downward until fully seated.

NOTE:

Inspect the door window for proper operation.
