Rear Side Door Window Weatherstrip Replacement

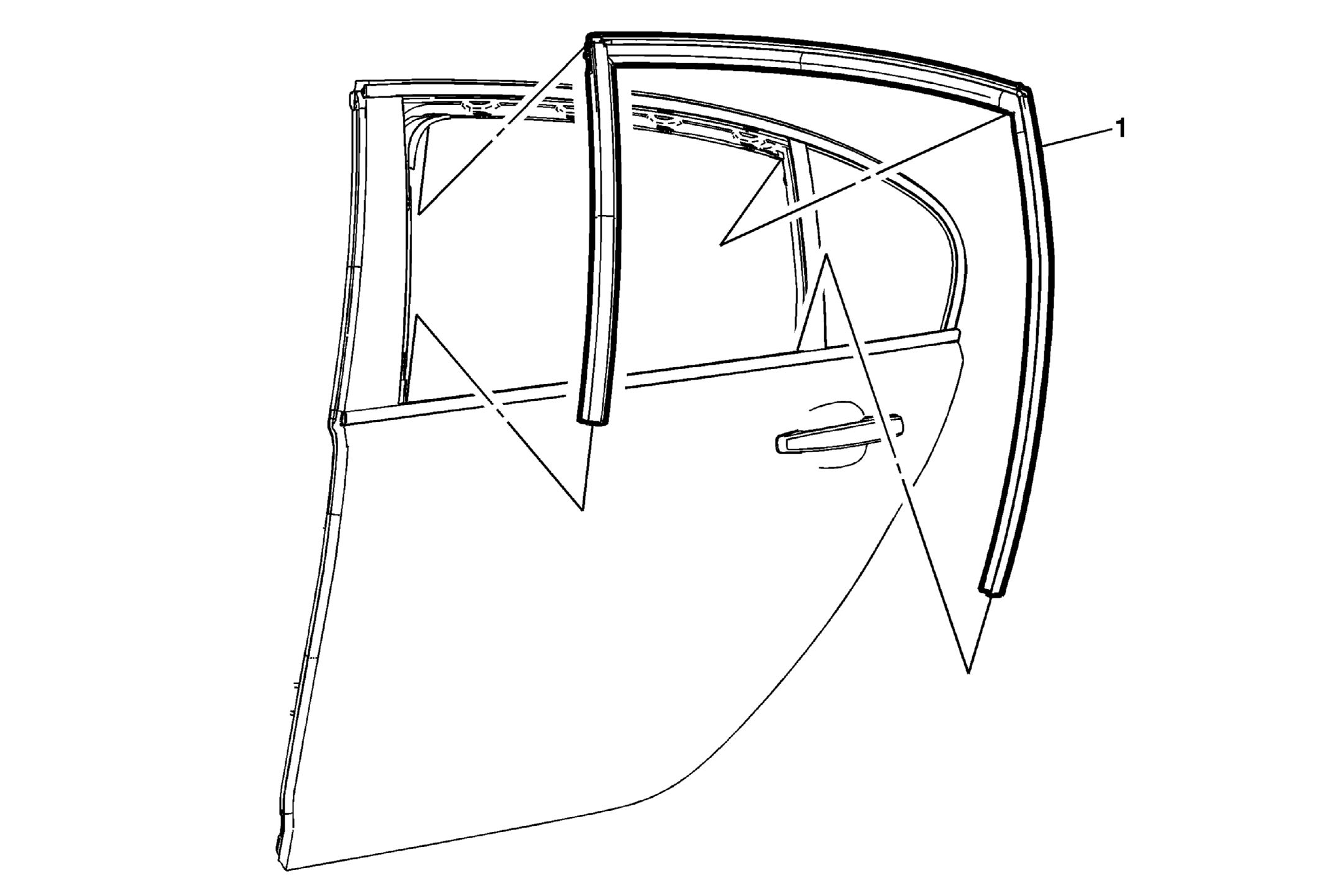

Fig 1: Rear Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedures Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Weatherstrip Procedures Insert the weatherstrip downward in the guide until fully seated. Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the guides. NOTE: Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Preliminary Procedures Remove the rear side door window. Refer to Rear Side Door Window Replacement .

Rear Side Door Window Weatherstrip

Procedures

Insert the weatherstrip downward in the guide until fully seated.
Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the guides.

NOTE:

Inspect the door window for proper operation before installing the door trim.
