Windshield Side Reveal Molding Replacement

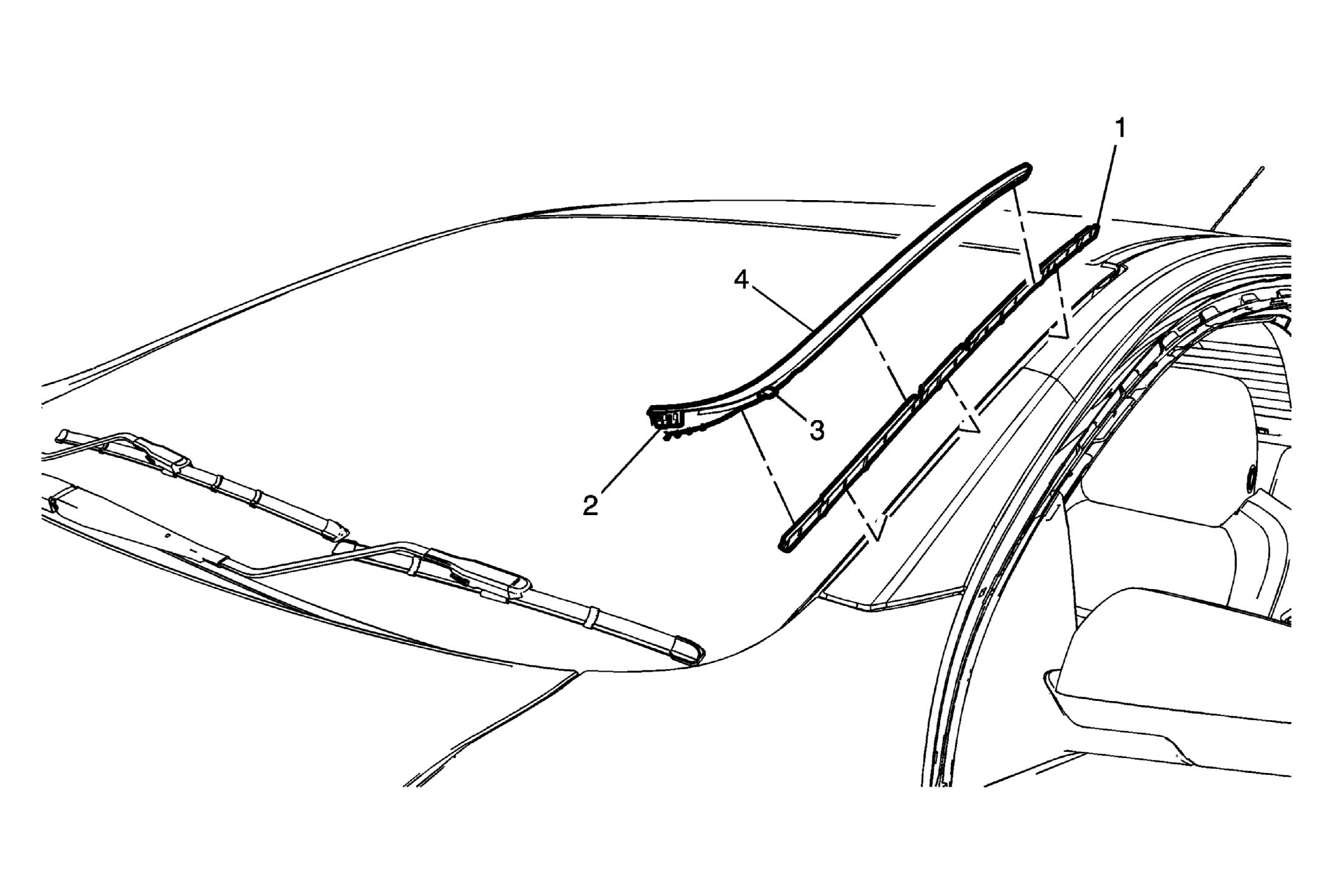

Fig 1: Windshield Side Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Side Reveal Molding Adhesive Retainer
2	Windshield Side Reveal Molding Front Clip
3	Windshield Side Reveal Molding Clip
4	Windshield Side Reveal Molding Procedure Unclip rib from body bracket, starting from the top of the roof and working down towards the clip in the fender. Unhook tab from fender. Disengage clip by lifting molding in a vertical direction.
