Antilock Brake System Wiring Schematics
›
Module Power, Ground, Serial Data, and Traction Control
Module Power, Ground, Serial Data, and Traction Control

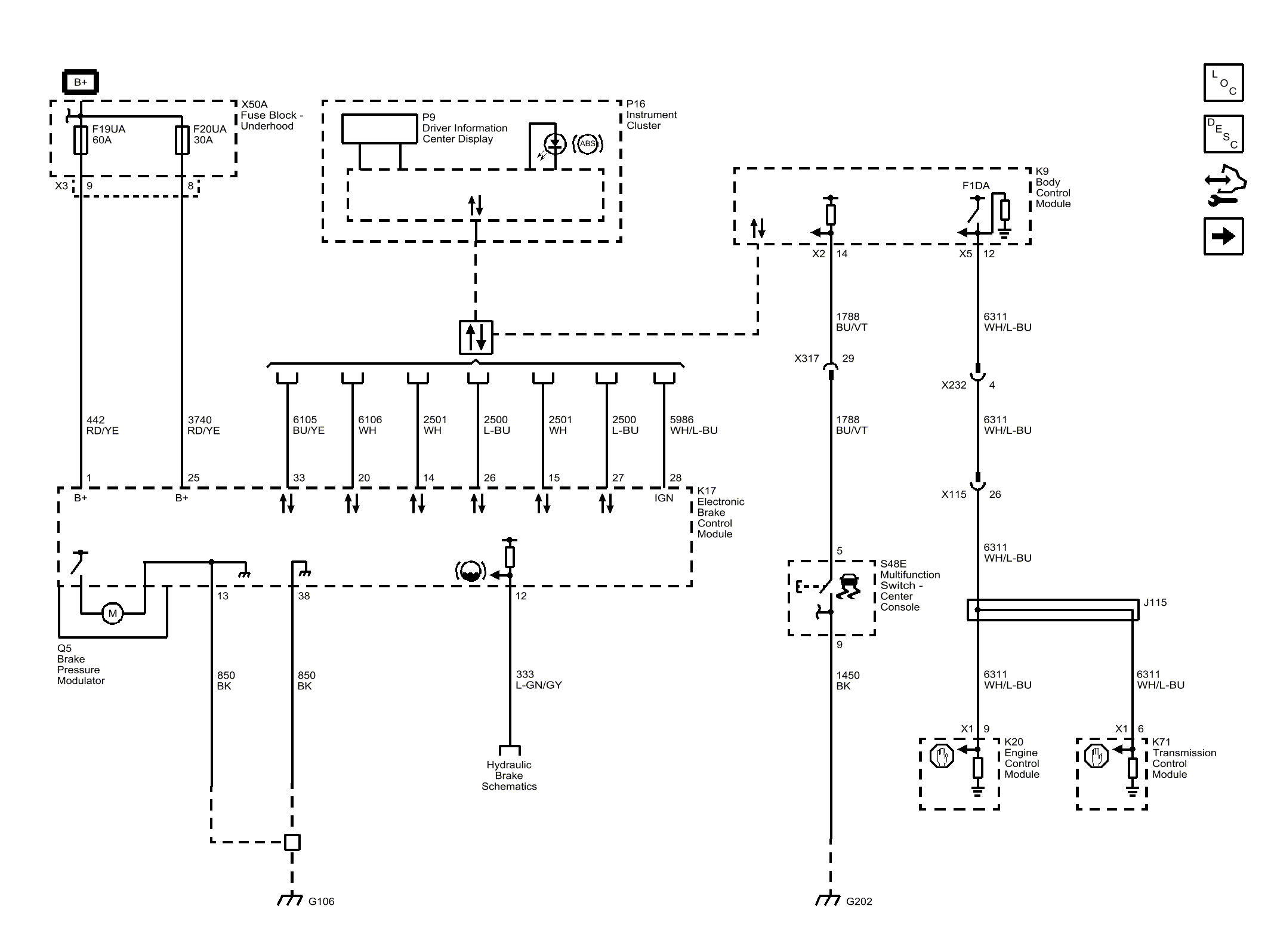

Fig 1: Module Power, Ground, Serial Data, and Traction Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
