Rear Axle Usage

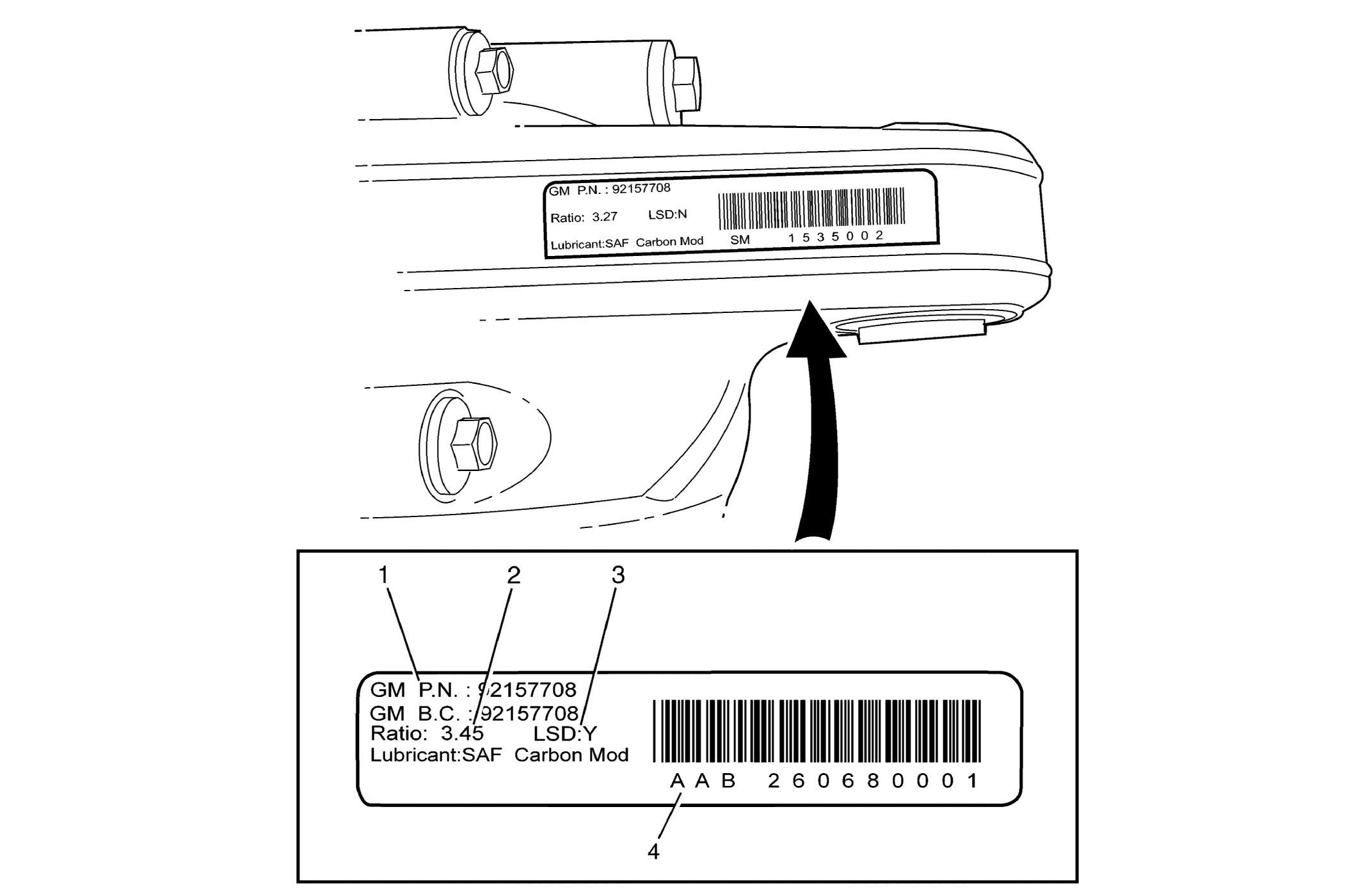

Fig 1: Rear Axle Identification Markings
GM1958990Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 GM Part Number
2 Differential Ratio
3 L.S.D Yes or L.S.D No
4 GM Broadcast Code
