Exhaust Heat Shield Replacement - Dash Panel

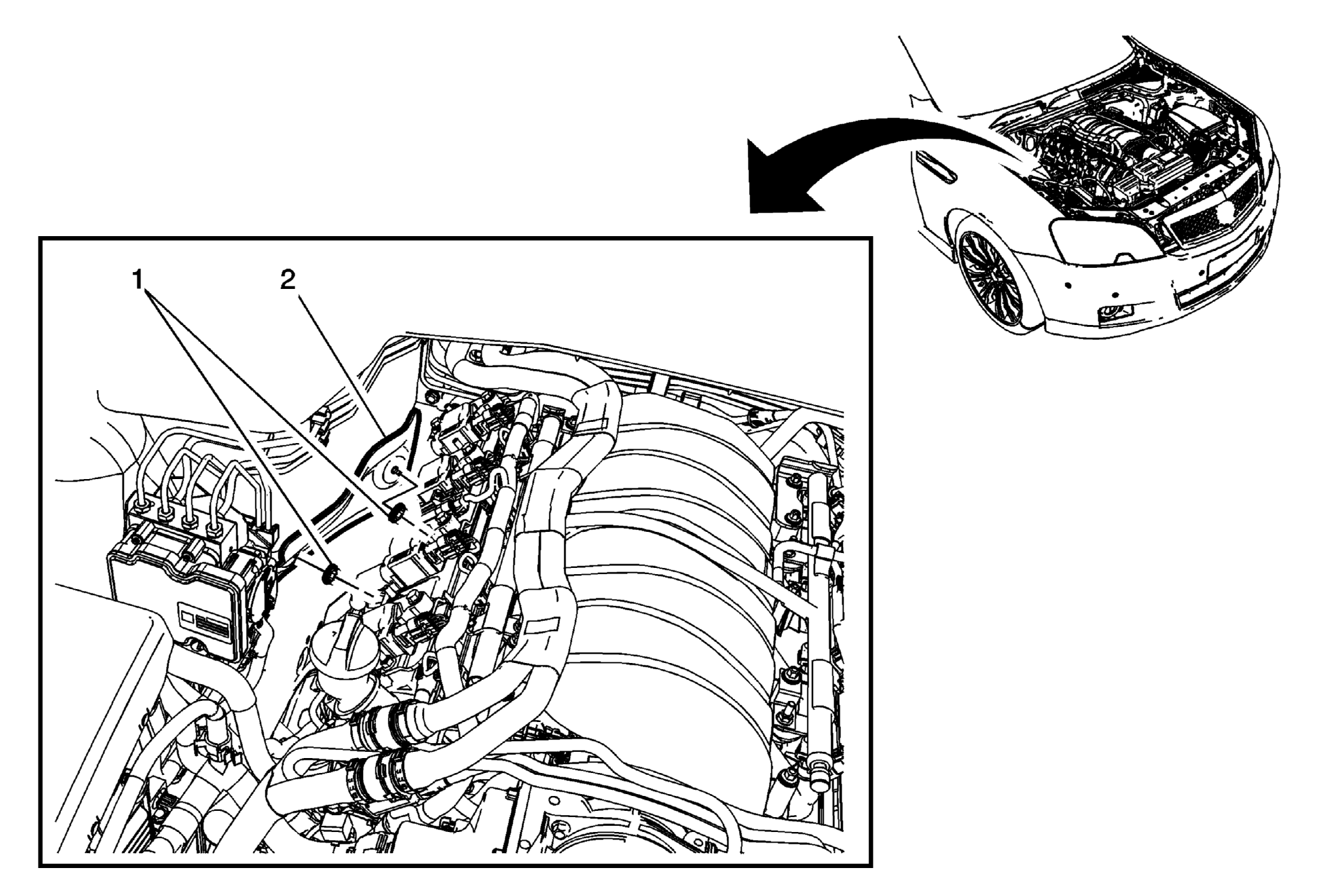

Fig 1: Exhaust Heat Shield - Dash Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Moving Parts and Hot Surfaces Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Engine Cover Replacement
1	Heat Shield Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  4.5 N.m (40 lb in)
2	Heat Shield
