Installation Procedure

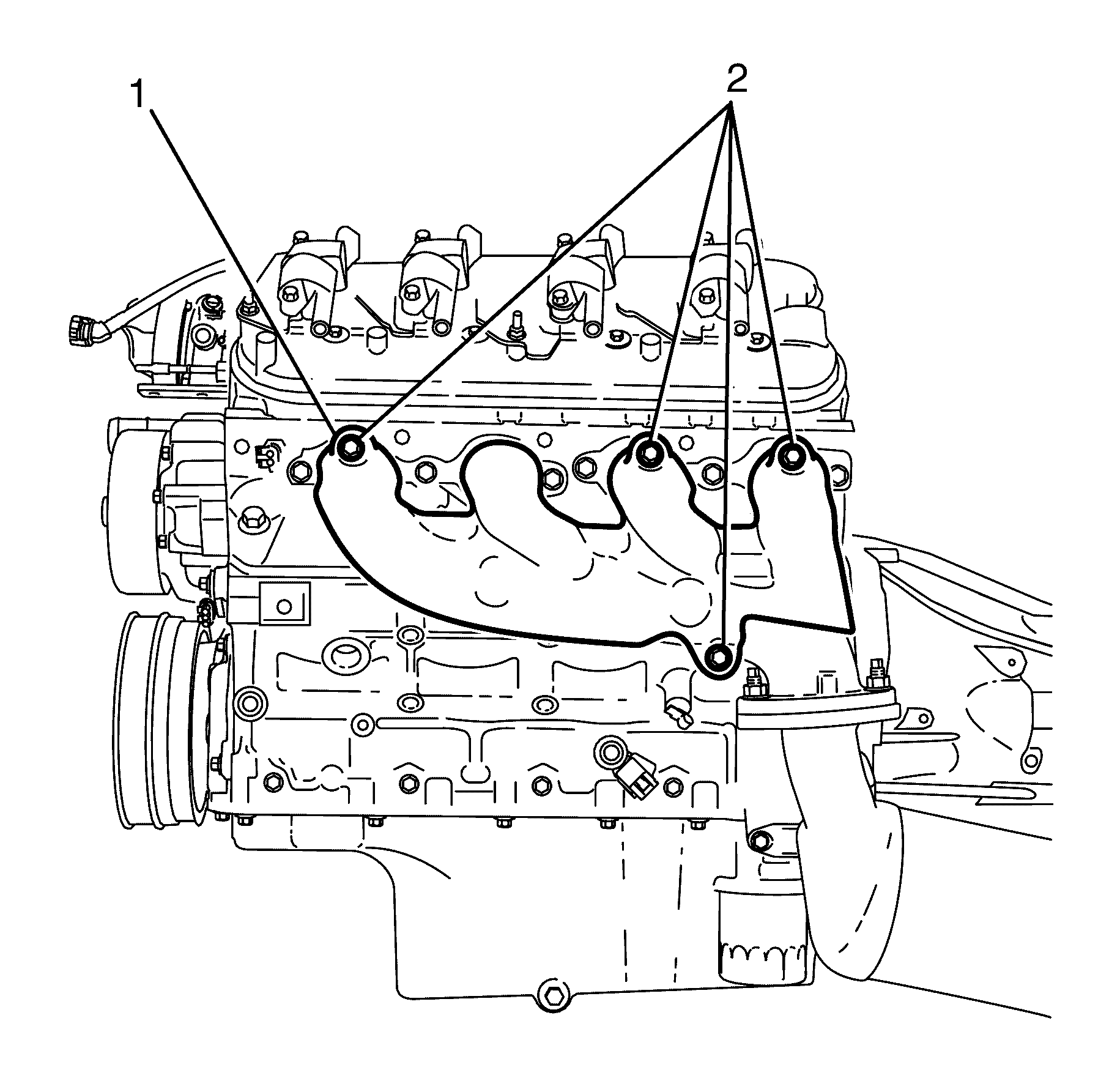

    Fig 1: Left Side Exhaust Manifold Heat Shield To Left Side Exhaust Manifold Retaining Bolts
    GM1951047Courtesy of GENERAL MOTORS COMPANY
  1. Position the exhaust manifold heat shield (1) to the exhaust manifold.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the exhaust manifold heat shield to exhaust manifold retaining bolts (2) and tighten to 10 N.m (89 lb in).
  3. Install the engine dress cover. Refer to Engine Cover Replacement .
