Installation Procedure

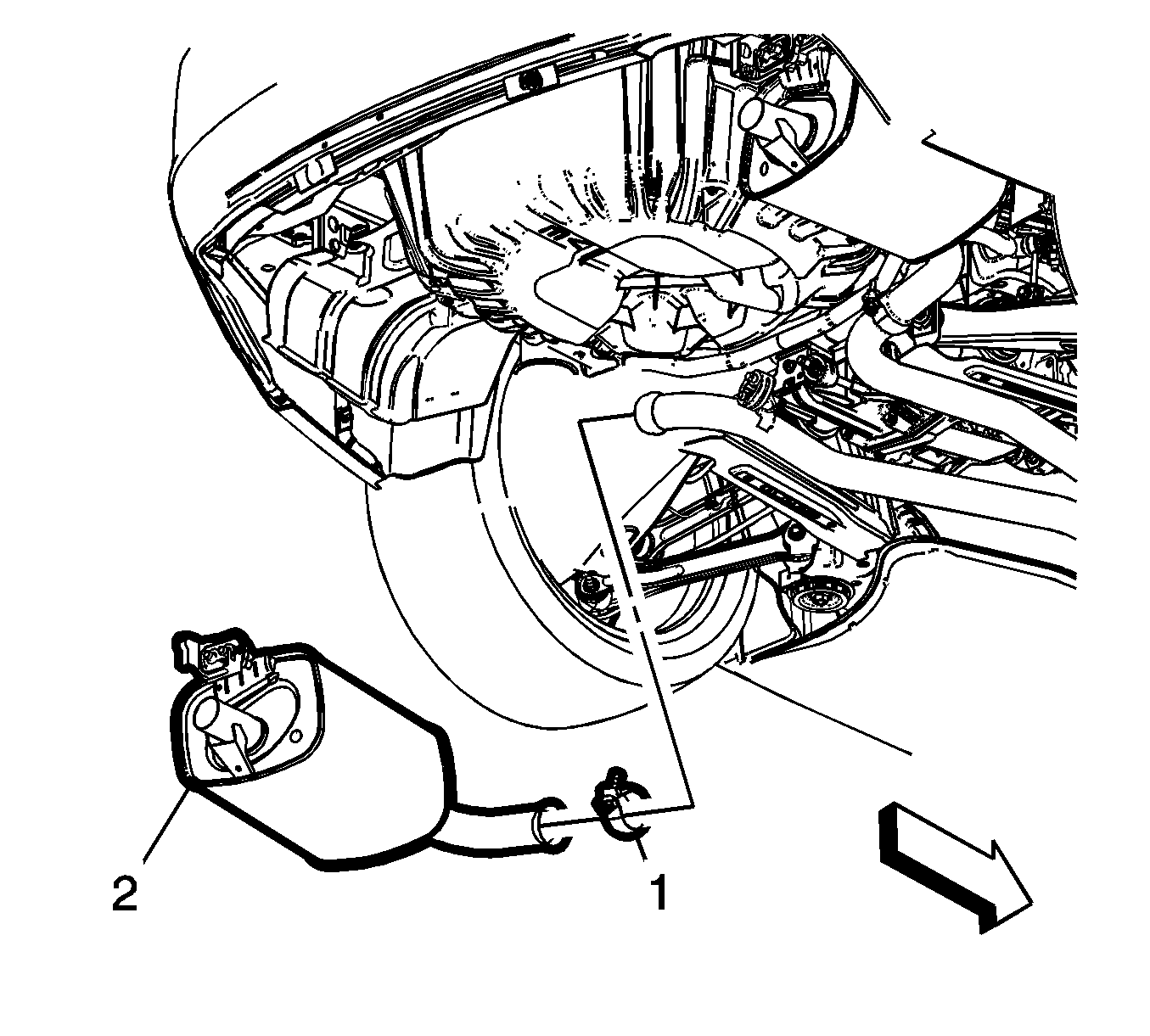

    Fig 1: Left Rear Exhaust Muffler & Clamp Fastener
    GM2968659Courtesy of GENERAL MOTORS COMPANY
  1. Install the left rear muffler (2) to the exhaust muffler with a NEW exhaust clamp.

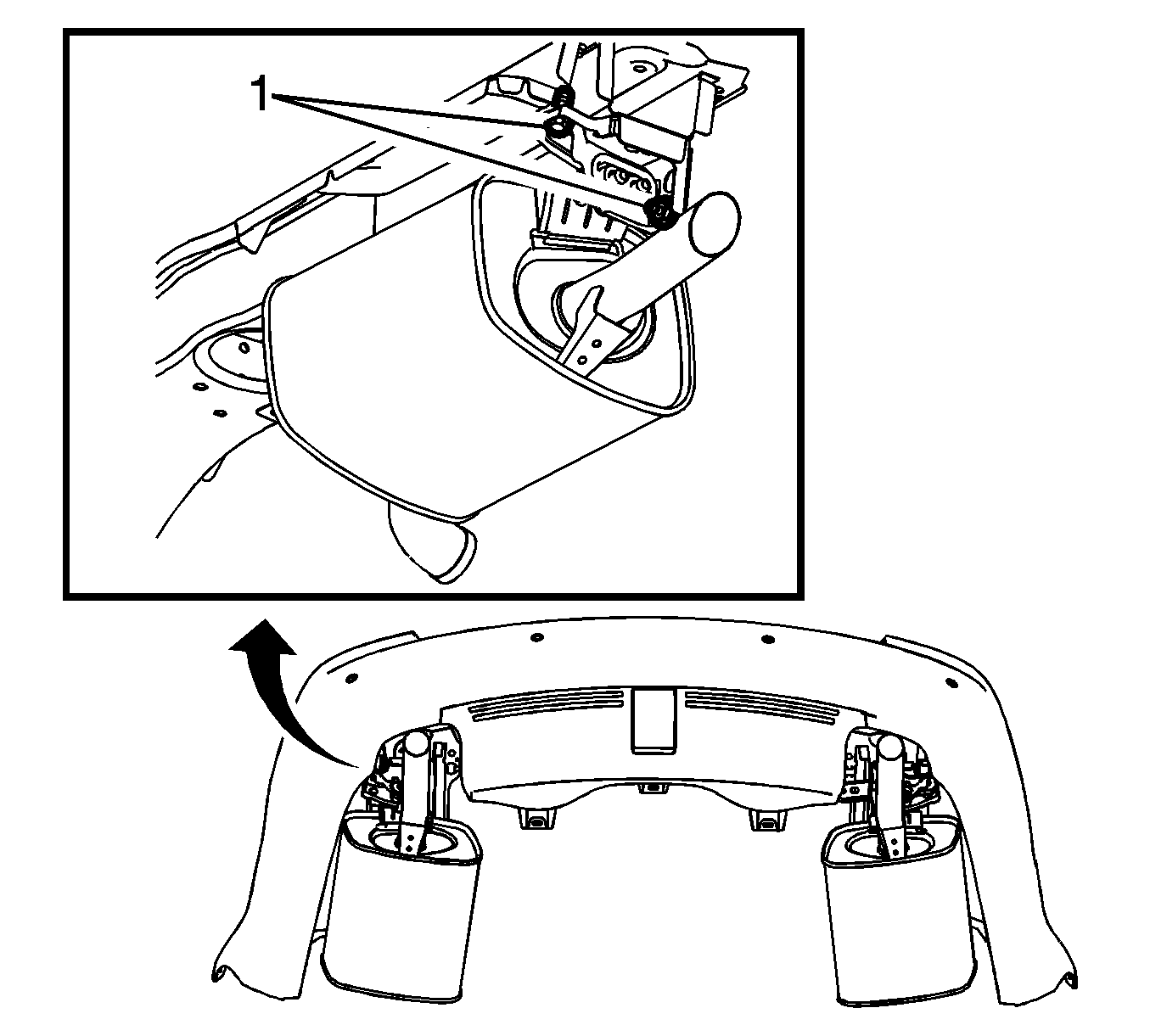

    2. Fig 2: Body Retaining Fasteners
    GM2590415Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the rear exhaust isolator hanger bracket fasteners (1) and tighten to 22 N.m (16 lb ft).
    3. Fig 3: Left Rear Exhaust Muffler & Clamp Fastener
    GM2968659Courtesy of GENERAL MOTORS COMPANY
  3. Tighten the left rear exhaust muffler clamp fastener (1) to 50 N.m (37 lb ft).
  4. Lower the vehicle to the ground.
  5. Start the vehicle and check for exhaust leaks.
