Turn Signal Switch Bracket Replacement

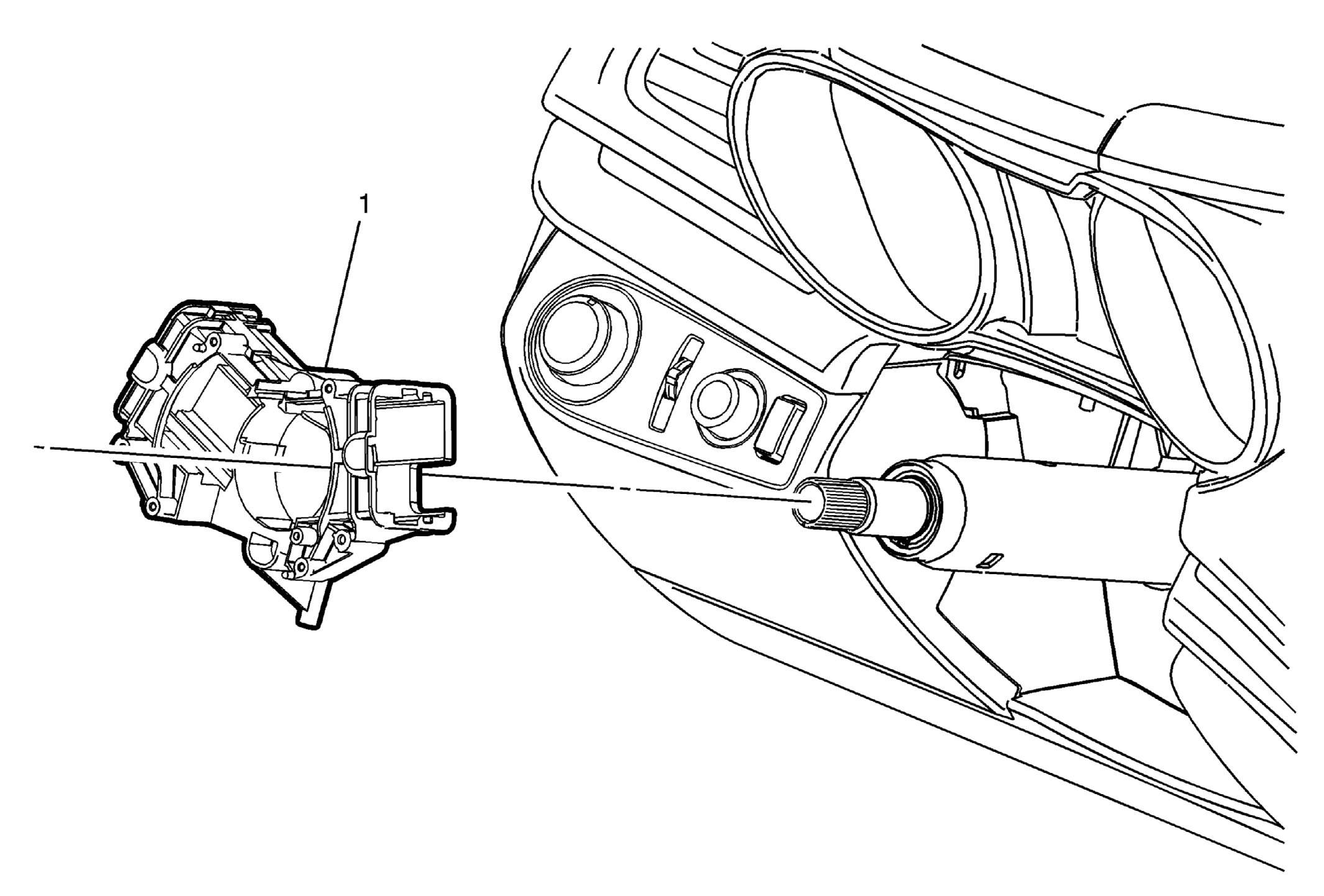

Fig 1: Turn Signal Switch Bracket
GM3414291Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Coil Replacement
  2. Turn Signal Switch Replacement
  3. Windshield Wiper and Washer Switch Replacement
1 Turn Signal Switch Bracket
Procedure
Release the plastic retaining tabs to release the turn signal switch bracket from the steering column.
