Accessory Switch Replacement

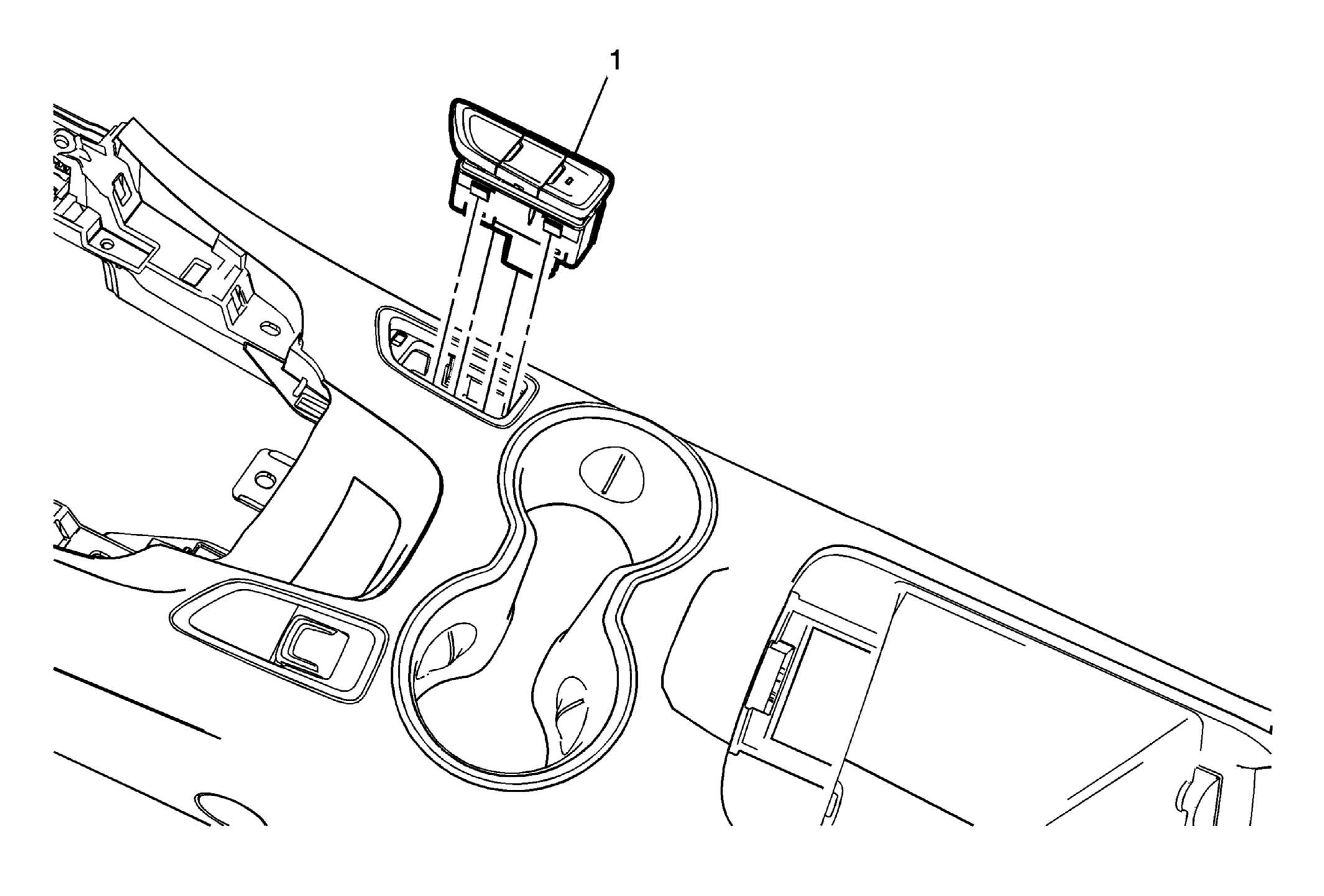

Fig 1: Accessory Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console. Refer to Front Floor Console Replacement (Automatic)Front Floor Console Replacement (Manual) .
1	Accessory Switch Procedure  Depress the tabs to remove the switch from the front floor console accessory switch mount plate.
