Trailer Brake Control Switch Replacement

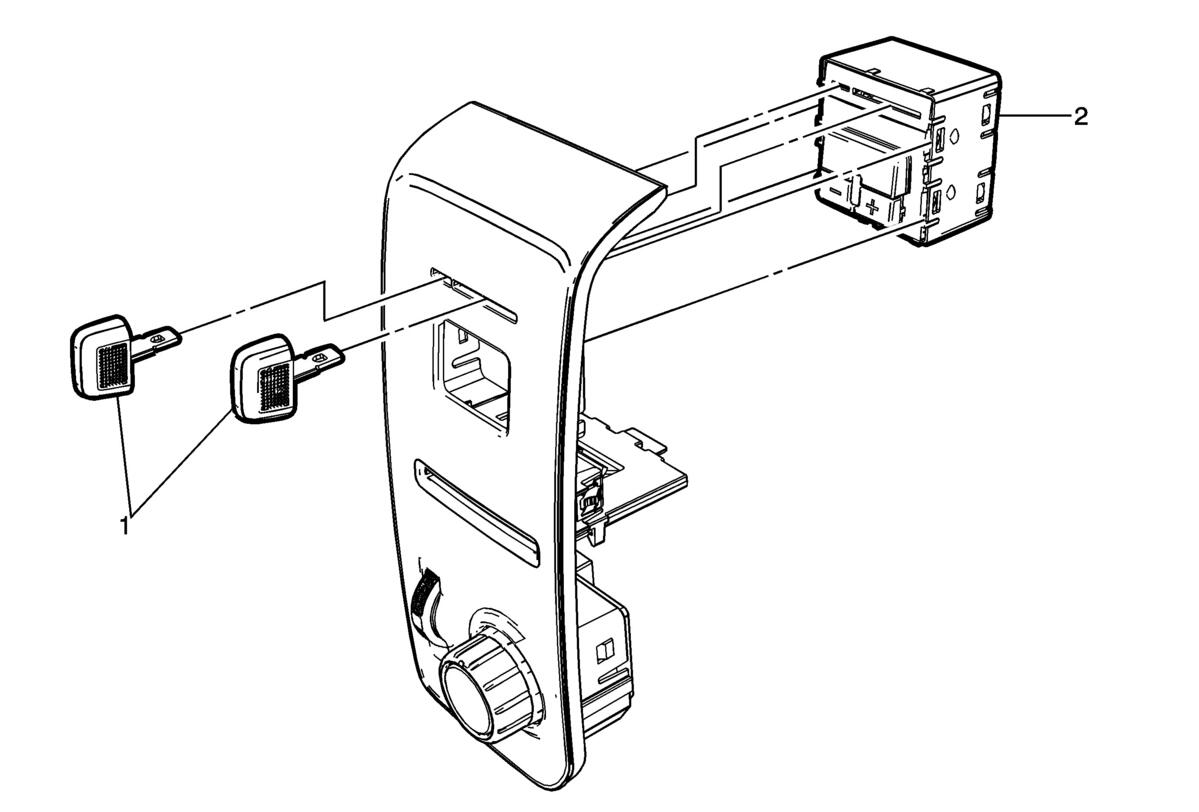

Fig 1: Trailer Brake Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
1	Trailer Brake Control Switch Levers Procedure  Gently pull levers from switch assembly.
2	Trailer Brake Control Switch Procedure  Using the appropriate tool gently depress tabs to remove the switch assembly from the instrument panel applique.
