Installation Procedure

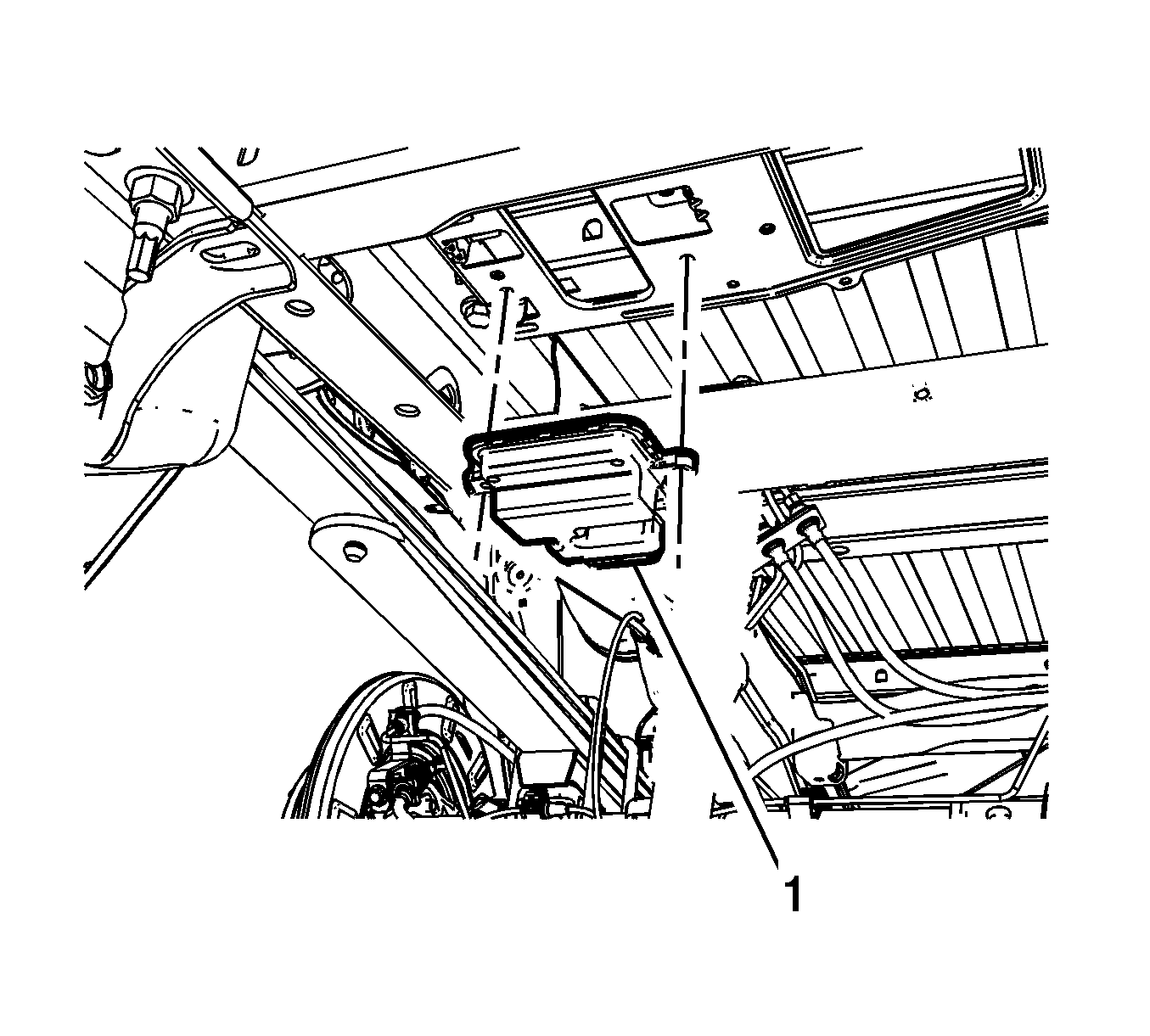

    Fig 1: Trailer Brake Control Module
    GM3268822Courtesy of GENERAL MOTORS COMPANY
  1. Install the trailer brake power control module (1).

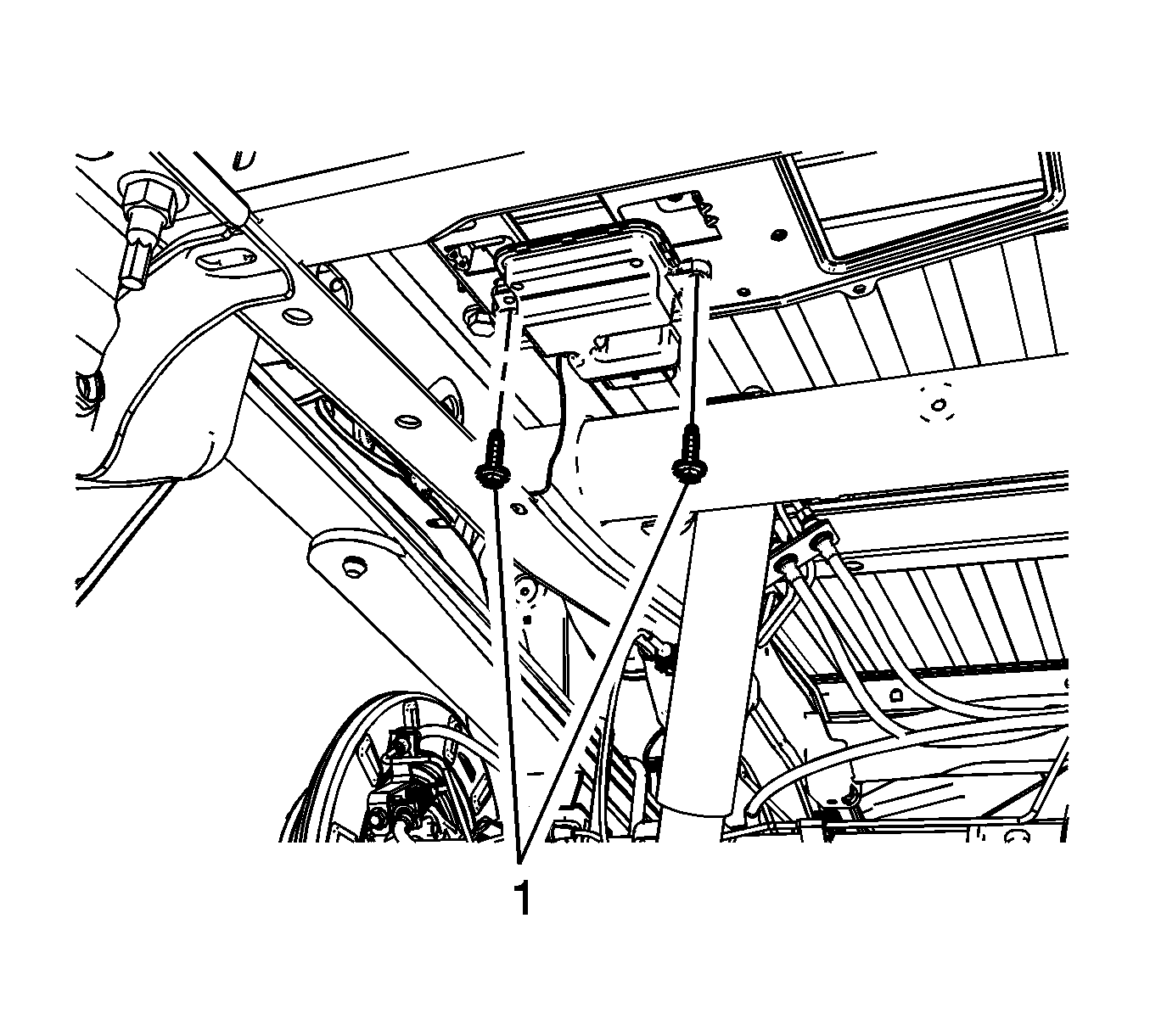

    2. Fig 2: Trailer Brake Control Module Bolts
    GM3268818Courtesy of GENERAL MOTORS COMPANY
  2. Holding the trailer brake power control module nuts stationary, install the trailer brake power control module bolts (1) and tighten to 9 (80 lb in).
  3. Connect the trailer brake power control module electrical connector.
  4. Raise and secure the spare tire and wheel assembly.
  5. Program the trailer brake power control module. Control Module References
