Chevrolet
›
2017
›
Sonic Premier, 4D Hatchback, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System And Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Keyless Entry - Passive Entry (ATH)
Keyless Entry - Passive Entry (ATH)

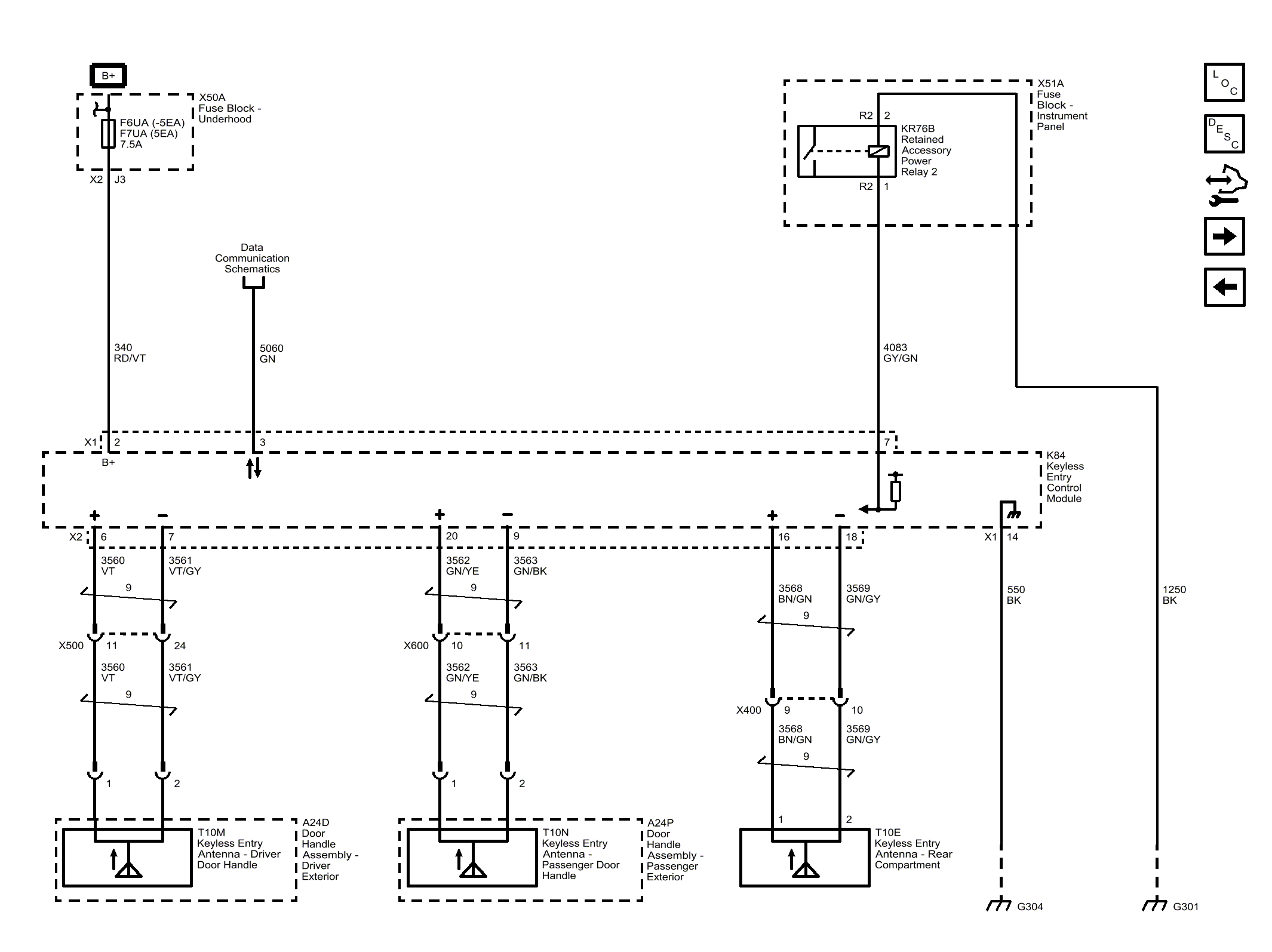

Fig 1: Keyless Entry Wiring Schematics - Passive Entry (ATH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
