Keyless Entry - Passive Start (ATH)

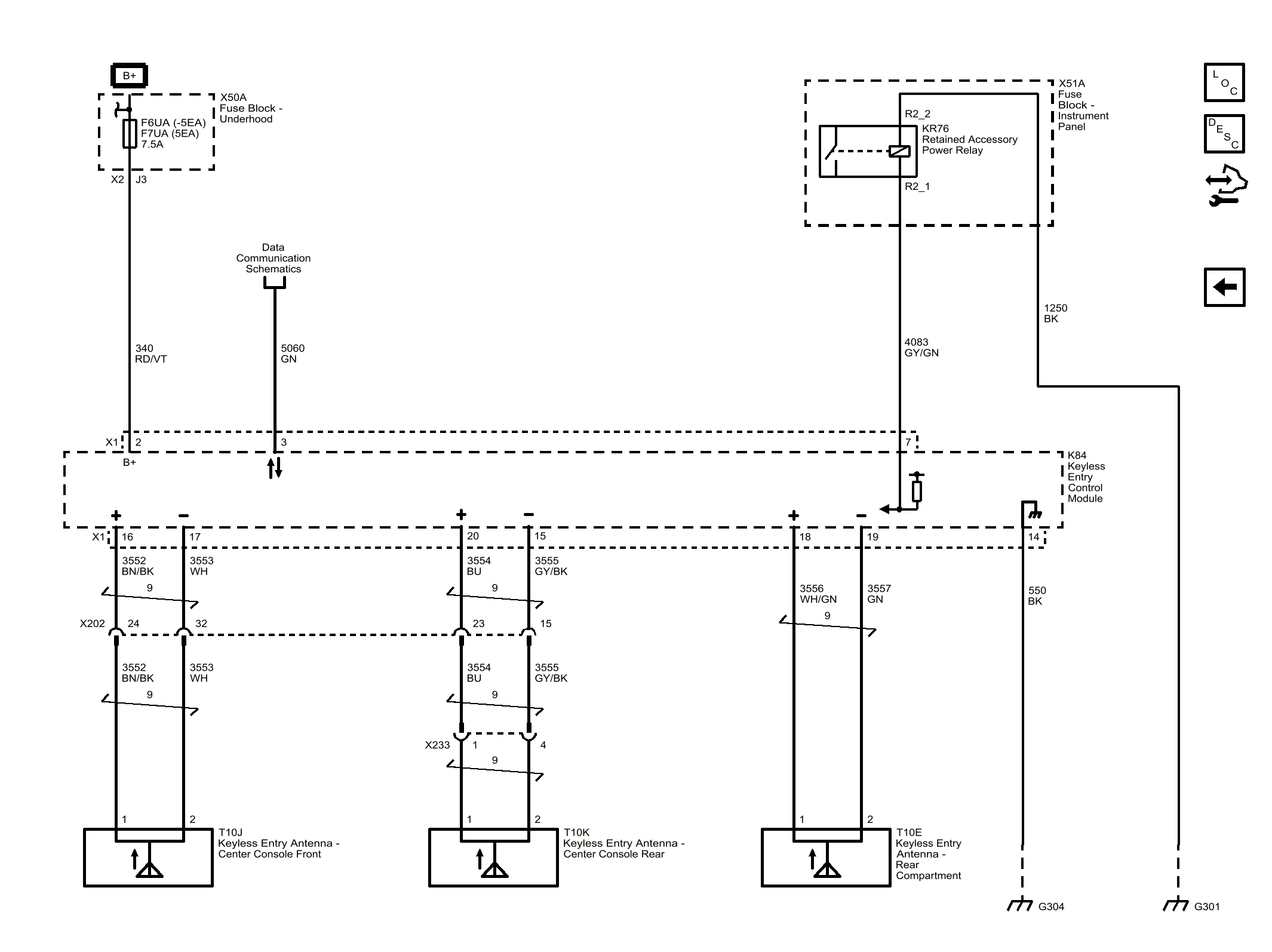

Fig 1: Keyless Entry Wiring Schematics - Passive Start (ATH)
GM4448103Courtesy of GENERAL MOTORS COMPANY
