Defogger Wiring Schematics: Defogger

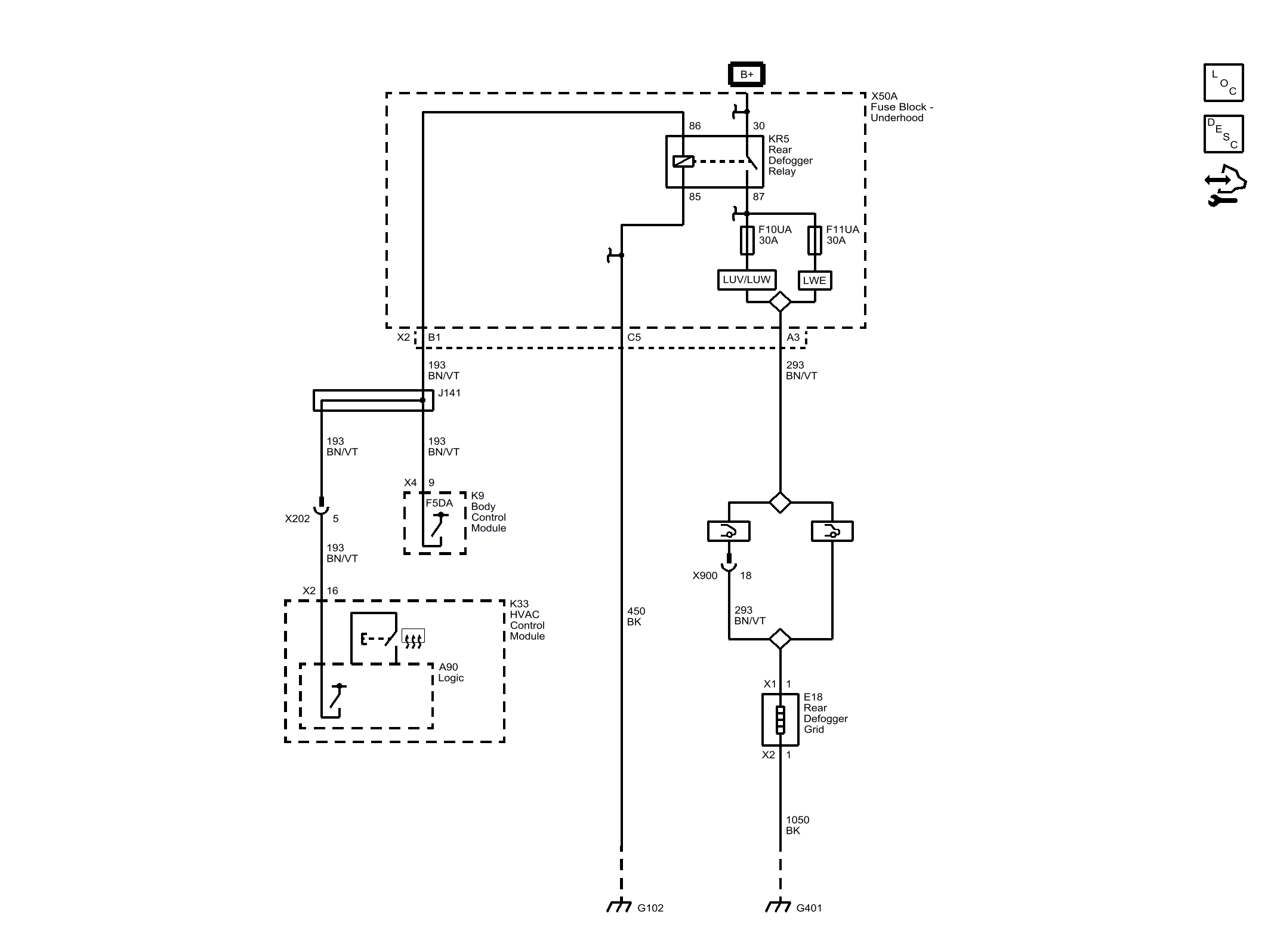

Fig 1: Defogger Wiring Schematic
GM4427113Courtesy of GENERAL MOTORS COMPANY
