Subsystem References Wiring Schematic (4 of 5)

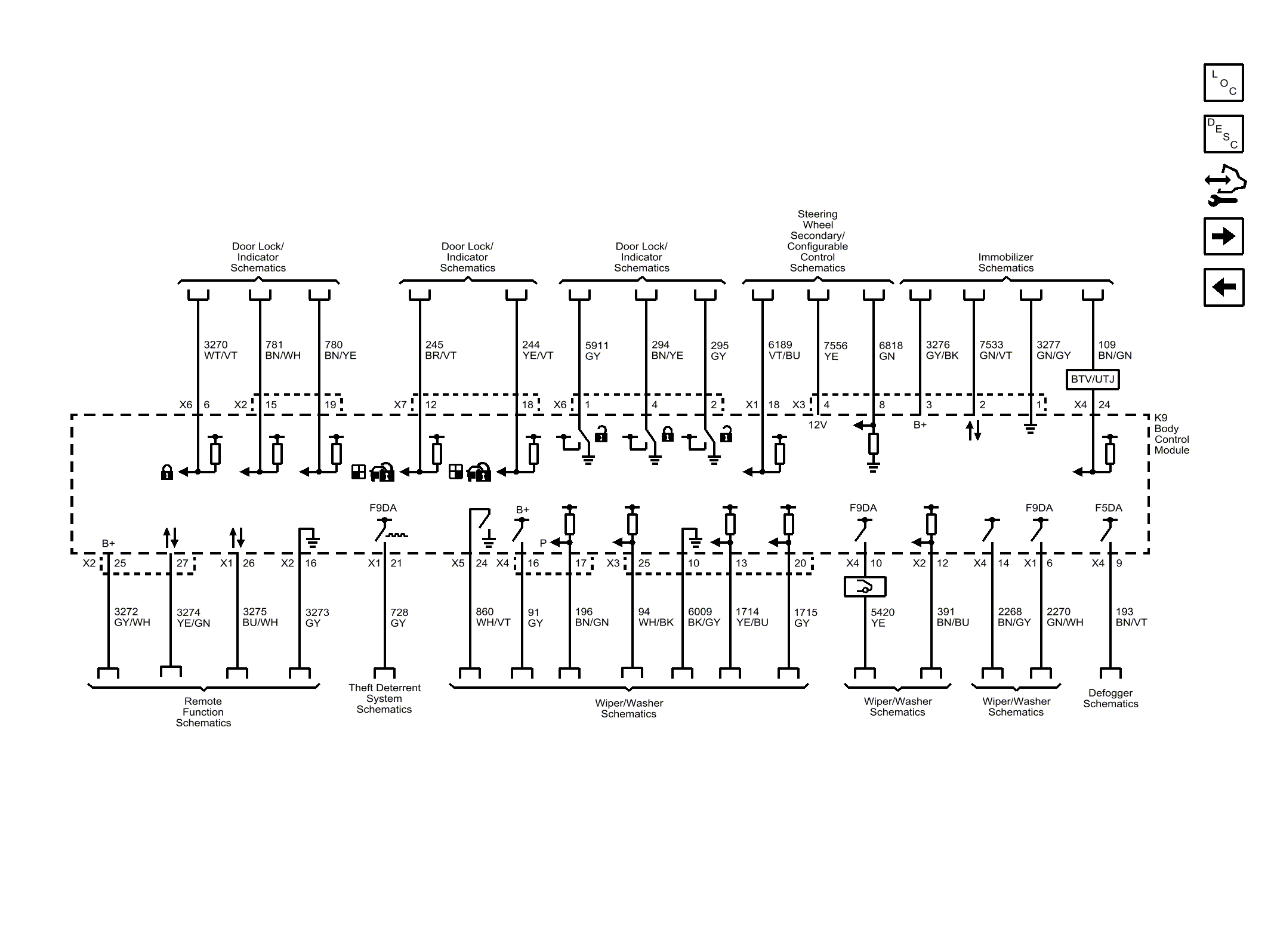

Fig 1: Subsystem References Wiring Schematic (4 of 5)
GM4427250Courtesy of GENERAL MOTORS COMPANY
