Communication Enable and Linear Interconnect Network (LIN)

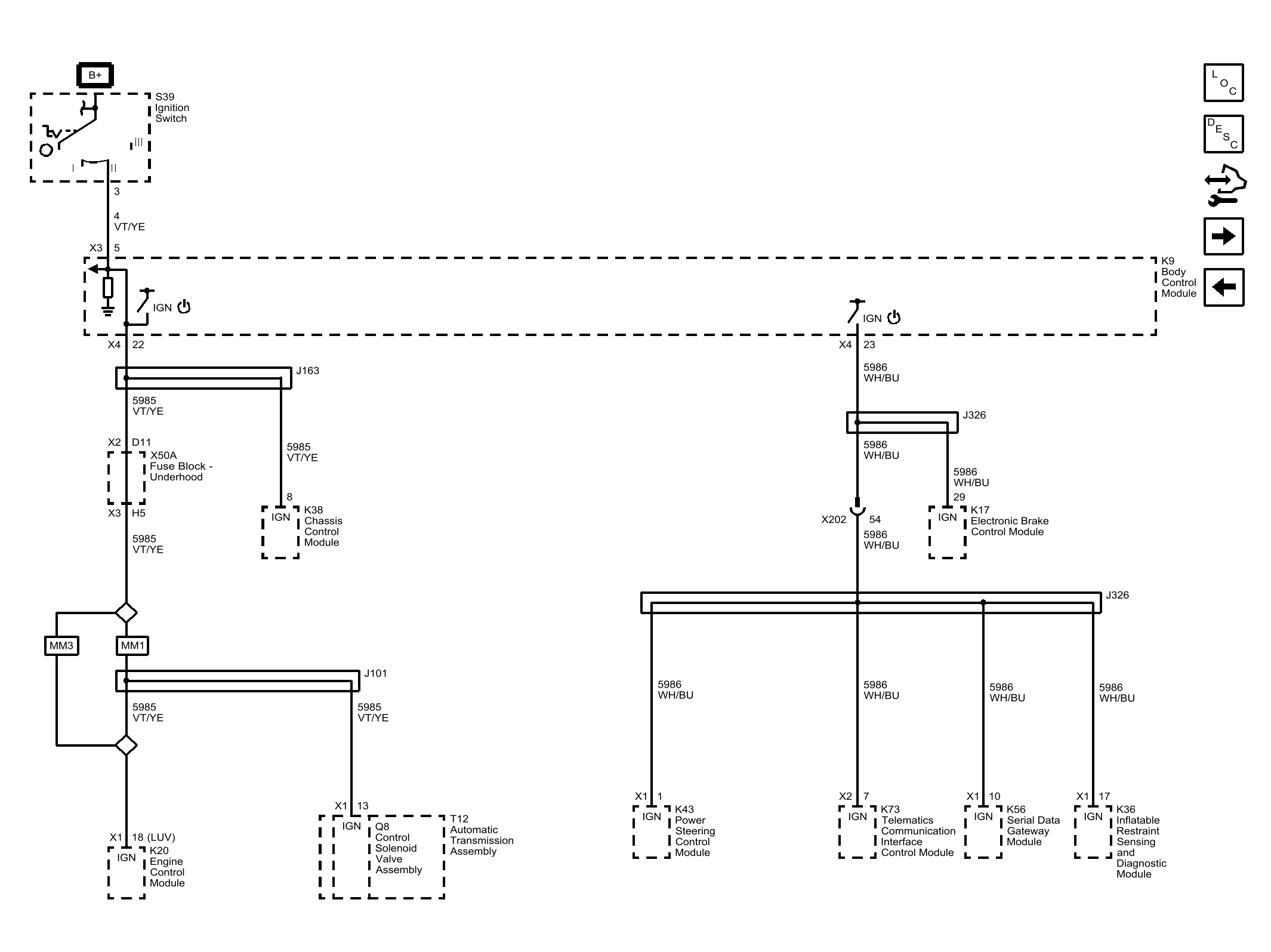

Fig 1: Communication Enable and Linear Interconnect Network Wiring Schematic (LIN)
GM4427239Courtesy of GENERAL MOTORS COMPANY
